Wall Recessed Pro Range – 68072C/W
48 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

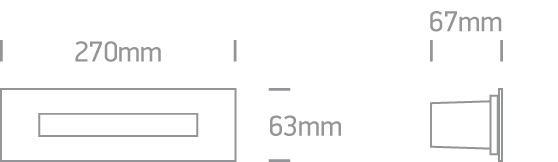

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
Wall Recessed Pro Range
Colour
Stainless Steel
Material
Stainless Steel
Diffuser Material
Glass
Shape
Rectangular
Length
270 mm
Width
63 mm
Height
67 mm
Cutout Hole Width
253mm
Cutout Hole Height
55mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
Yes
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
75mm
Indoor
Yes
Outdoor
Yes
Ik Rating
8
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
10W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Voltage
26V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
9,1W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Edison
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
6-9W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
350mA,
Specifications Voltage Range Vr
VR@350mA=17-26V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Housing Material
Plastic
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
200lm
Data Light Efficiency
20lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Length Cm
9cm
Info Box Width Cm
7,5cm
Info Box Height Cm
29cm
Info Box Weight Kg
1.275kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889057734
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
