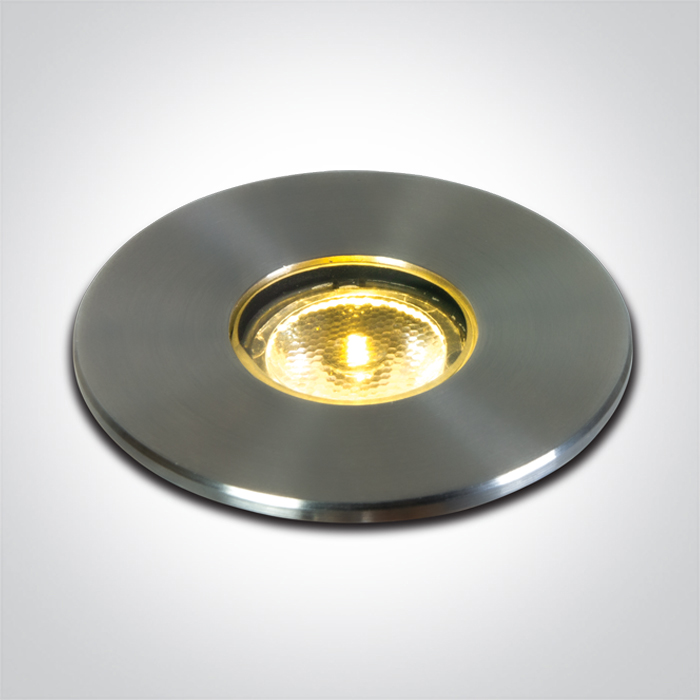

Wall Recessed & Inground – 69028A/W
1168 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

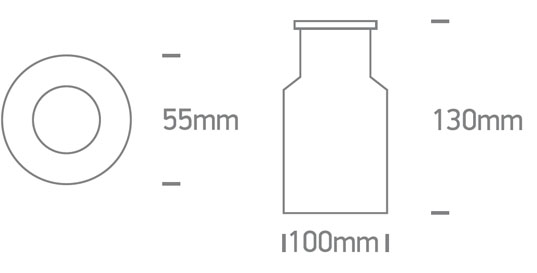

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
New 2025 Edition 2
Family
Wall Recessed & Inground
Colour
Stainless Steel
Material
Stainless Steel
Diffuser Material
Glass
Shape
Circular
Height
130 mm
Diameter
55mm
Cutout Hole Diameter
100mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
130mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
8
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
2W
Ip Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Safety Class
III
Excluding Gear Power Watts
1,8W
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Osram
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
90lm
Data Light Efficiency
45lm/W
Data Cri
80
Data Beam Angle
30°
Data Darklight
No
Packing Info
Info Box Weight Kg
0.591kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889080138
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
