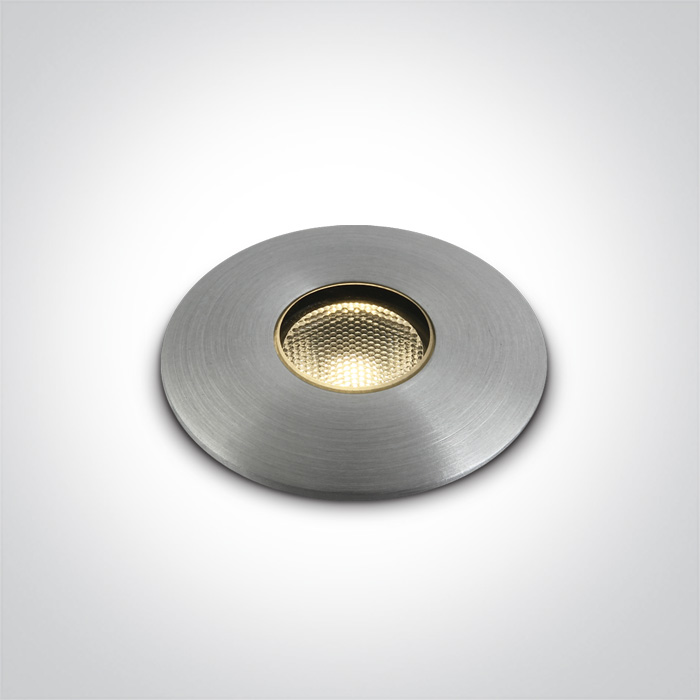

The Inground Mini Series – 69042/AL/W
1118 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

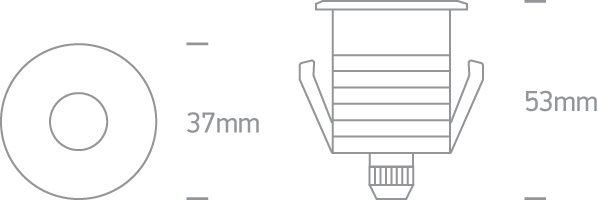

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Colour
Aluminium
Material
Natural Aluminium
Diffuser Material
Glass
Shape
Circular
Height
53 mm
Diameter
37mm
Cutout Hole Diameter
30mm decking 35mm concrete
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
80mm deck 95mm+300mm drainage Concrete
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA/700mA
Excluding Gear Voltage
3,1V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
1W/2W
Excluding Gear Ip Rating
IP67
Excluding Gear Light Source
LED built in
Excluding Gear Led Brand
Osram
Excluding Gear Led Number
1
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
200cm
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
150lm
Data Light Efficiency
75lm/W
Data Cri
90
Data Darklight
No
Packing Info
Info Box Length Cm
6,5cm
Info Box Width Cm
5cm
Info Box Height Cm
10,5cm
Info Box Weight Kg
0.190kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889045243
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
Average Lifetime
50000Hours
