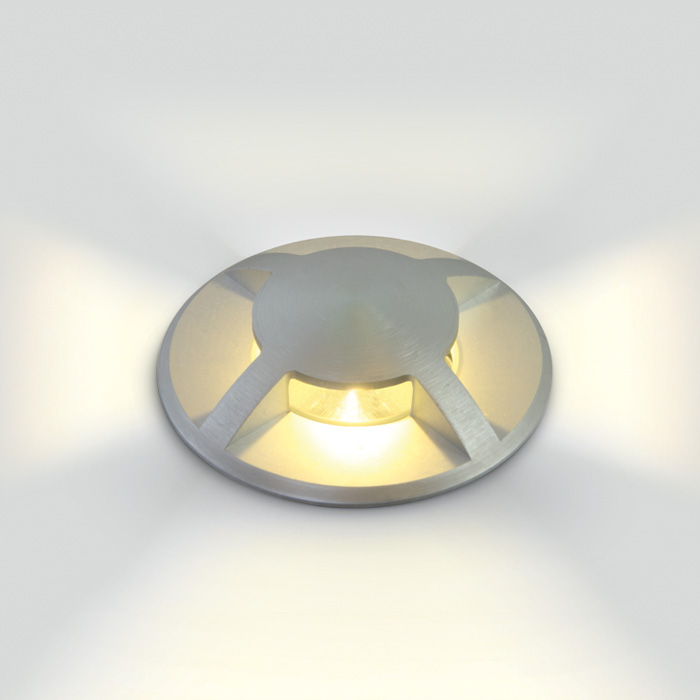

The Inground Medium Series GU10 Aluminium - 69016AG
IP Rating IP67

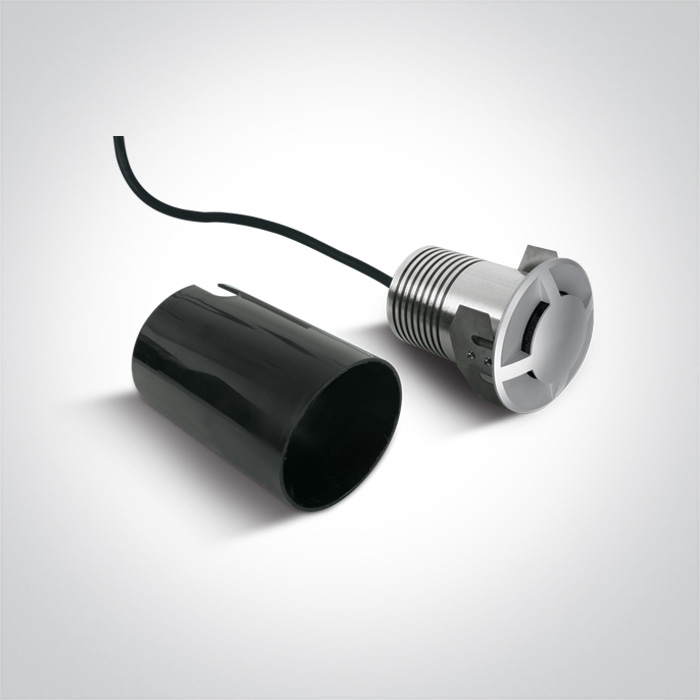

The Inground Medium Series GU10 Aluminium - 69016AG - Image 2

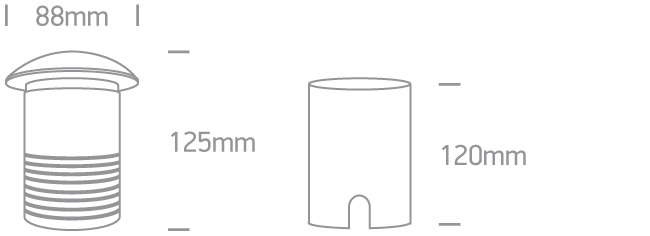

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
The Inground Medium Series GU10 Aluminium
Colour
Aluminium
Material
Aluminium
Shape
Circular
Height
125 mm
Diameter
88mm
Cutout Hole Diameter
80mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
130mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Ik Rating
10
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
10W
Ip Rating
IP67
Light Source
Replaceable lamp
Lamp Holder
GU10
Number Of Lamps
1
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
No
Packing Info
Info Box Length Cm
18,5cm
Info Box Width Cm
12,5cm
Info Box Height Cm
12,5cm
Info Box Weight Kg
0.838kg
Info Pcs Per Box
18
Info Barcode Ean Number
5291889058212
Customs
Tariff
9405413990
Energy Certificates - Warranty
Energy Consumption
0
Warranty
2 Years

The Inground Medium Series GU10 Aluminium – 69016AG

69016AG

399 in stock

  • Inground MR16 fitting with GU10 lampholder, IK10, IP67
  • Complies with standard EN60598-1 and any other specific standards.
