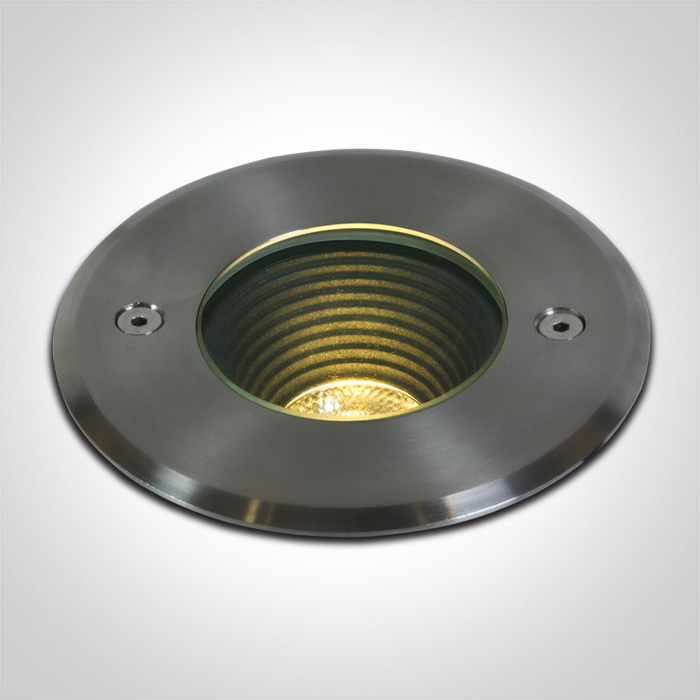

The Dark Light Inground Range - 69070C/W
IP Rating IP67
Darklight Yes

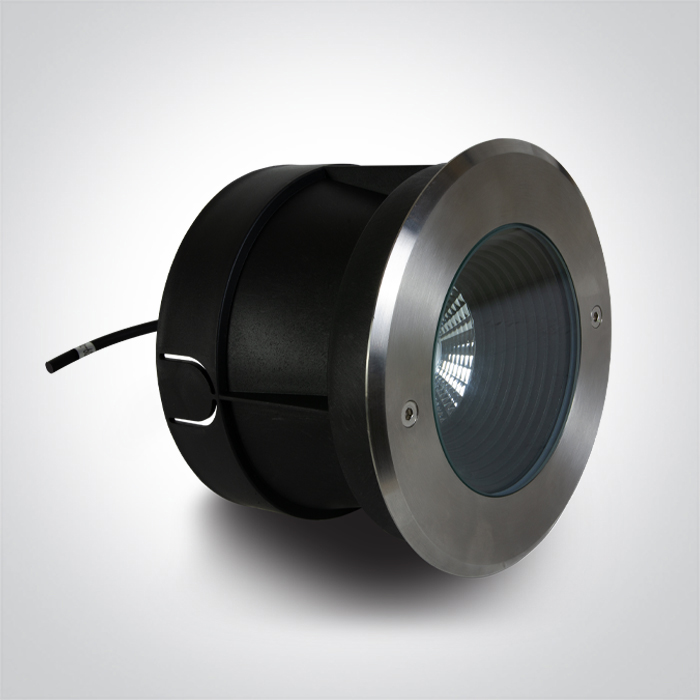

The Dark Light Inground Range - 69070C/W - Image 2

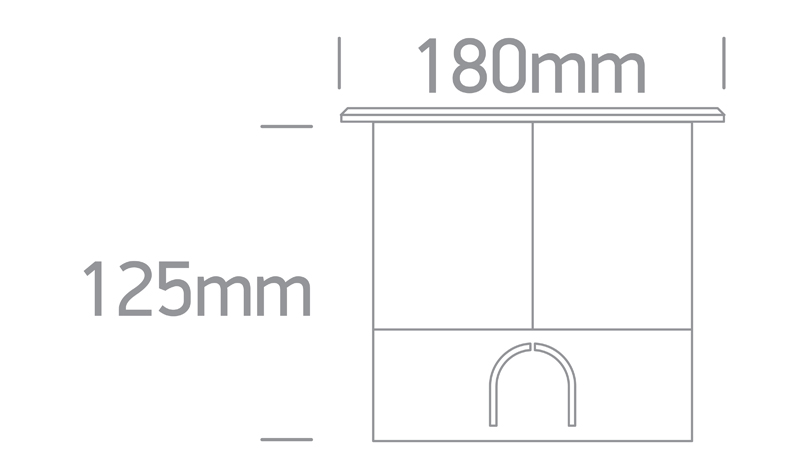

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
The Dark Light Inground Range
Colour
Stainless Steel
Material
Die Cast
Shape
Circular
Height
125 mm
Diameter
180mm
Cutout Hole Diameter
165mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
155mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
10
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
15W
Ip Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Cree
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1200lm
Data Light Efficiency
80lm/W
Data Cri
80
Data Beam Angle
20°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
2.420kg
Info Pcs Per Box
6
Info Barcode Ean Number
5291889079682
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
Average Lifetime
30000Hrs L70B50

The Dark Light Inground Range – 69070C/W

69070C/W

168 in stock

  • 15W COB LED inground uplighter
  • IP67, stainless steel 316L and die cast aluminium body
  • Supplied with non-dimmable LED driver and box for concrete installation
  • Complies with standard EN60598-1 and any other specificstandards.
