The COB Inground Adjustable Range Stainless steel - 69054A/W
IP Rating IP67
The COB Inground Adjustable Range Stainless steel - 69054A/W - Image 2

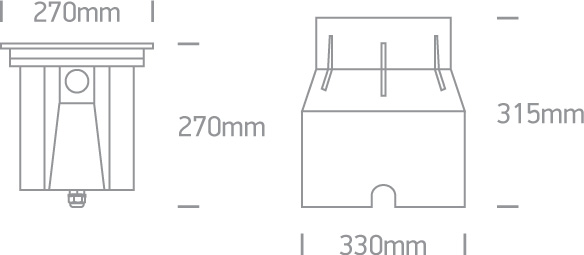

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
The COB Inground Adjustable Range Stainless steel
Colour
Stainless Steel
Material
Stainless Steel
Diffuser Material
Glass
Shape
Circular
Height
270 mm
Diameter
270mm
Cutout Hole Diameter
330mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
330mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Ik Rating
10
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
30W
Ip Rating
IP67
Light Source
LED built in
Dimmable
Yes
Dimmer Type
Triac
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
2000lm
Data Light Efficiency
66,67lm/W
Data Cri
80
Data Beam Angle
20°
Data Darklight
No
Packing Info
Info Box Length Cm
34cm
Info Box Width Cm
34cm
Info Box Height Cm
35cm
Info Box Weight Kg
8.000kg
Info Pcs Per Box
1
Info Barcode Ean Number
5291889057291
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

The COB Inground Adjustable Range Stainless steel – 69054A/W

69054A/W

60 in stock

  • 30W COB LED inground IP67, stainless steel 316, adjustable range
  • AC LED
  • Complies with standard EN60598-1 and any other specificstandards.
