The Asymmetric Inground Stainless steel – 69062/W
159 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

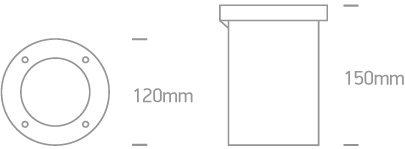

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
The Asymmetric Inground Stainless steel
Colour
Stainless Steel
Material
Stainless Steel
Shape
Circular
Height
150 mm
Diameter
120mm
Cutout Hole Diameter
115mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
170mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
8
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
8W
Ip Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Voltage
22V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
7,7W
Excluding Gear Ip Rating
IP67
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Edison
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
4,2-7W
Specifications Power Factor
0,8
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
350mA,
Specifications Voltage Range Vr
VR@350mA=12-20V
Specifications Ip Rating
IP20
Specifications Safety Class
I
Specifications Dimmable
No
Specifications Ambient Temperature
-20~+55°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Protection
Short Circuit
Specifications Fast Connector
No
Specifications Manufacturer
HEP
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
180lm
Data Light Efficiency
22,5lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Weight Kg
1.225kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889066071
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
