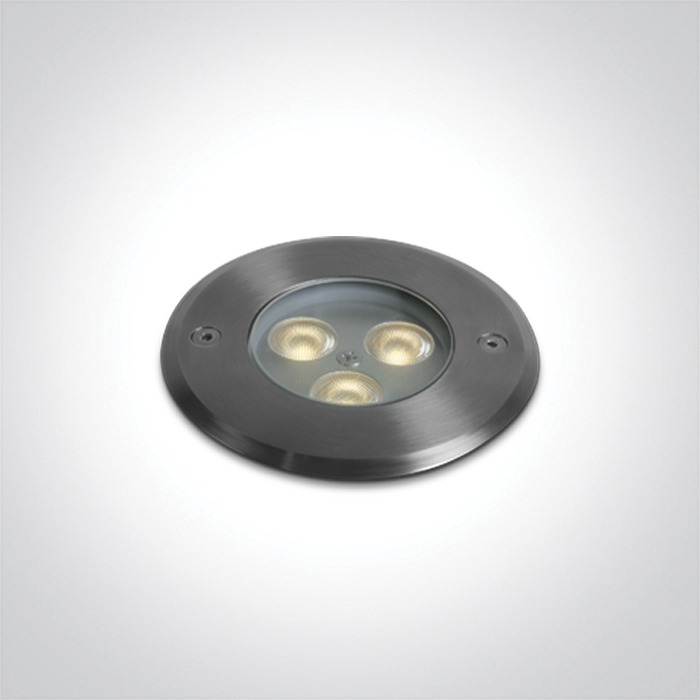

SS316L IP67 INGROUND 3x1W WW 24V DC LOW DEPTH DIMMABLE - 69076A
IP Rating IP67
New
SS316L IP67 INGROUND 3x1W WW 24V DC LOW DEPTH DIMMABLE - 69076A - Image 2

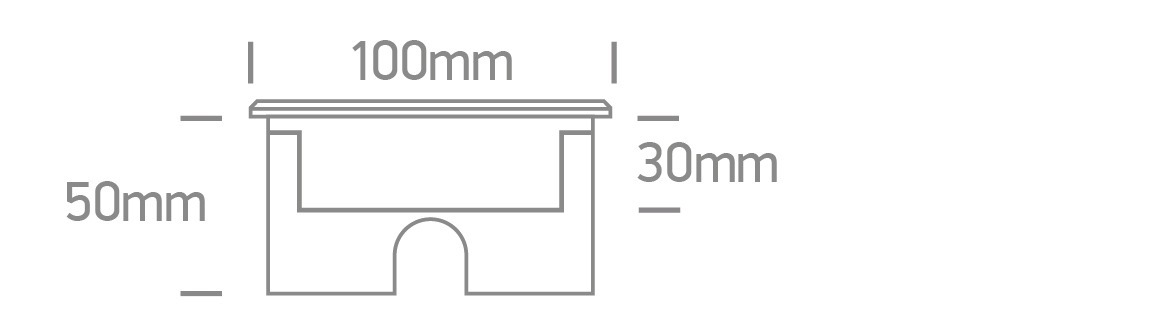

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
SS316L IP67 INGROUND 3x1W WW 24V DC LOW DEPTH DIMMABLE
Material
Stainless Steel
Shape
Circular
Height
50 mm
Diameter
100mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
Yes
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
50mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
10
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
Input Voltage
24V DC
Safety Class
III
Power Watts
3W
Ip Rating
IP67
Light Source
LED built in
Dimmable
No
Cable Length
2m
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Voltage
Excluding Gear Input Voltage
24V DC
Excluding Gear Safety Class
III
Excluding Gear Power Watts
3W
Excluding Gear Light Source
LED built in
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
2m
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Lumen Output
300lm
Data Light Efficiency
100lm/W
Data Cri
90
Data Beam Angle
45
Data Darklight
No
Packing Info
Info Box Weight Kg
0.625kg
Info Pcs Per Box
24
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

SS316L IP67 INGROUND 3x1W WW 24V DC LOW DEPTH DIMMABLE – 69076A

69076A
69076A
From £40.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 345 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
