Awaiting product image
IP Rating IP65 | IP65

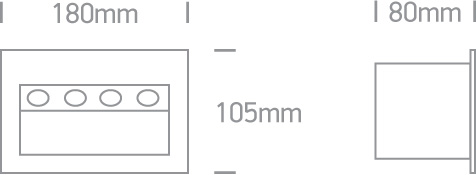

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
19 Wall Recessed & Inground
Family
Outdoor Wall Recessed Die Cast
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
180 mm
Width
180 mm
Height
80 mm
Cutout Hole Width
170mm
Cutout Hole Height
90mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
Yes
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
4x1W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Voltage
10V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
3,5W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Brand
Edison
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
100-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
1-4W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
350mA,
Specifications Voltage Range Vr
VR@350mA=3-12V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
280lm
Data Light Efficiency
70lm/W
Data Darklight
No
Packing Info
Info Box Length Cm
11cm
Info Box Width Cm
9cm
Info Box Height Cm
19cm
Info Box Weight Kg
0.908kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889043713
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

Outdoor Wall Recessed Die Cast – 68048

68048
68048
From £44.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 0 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
