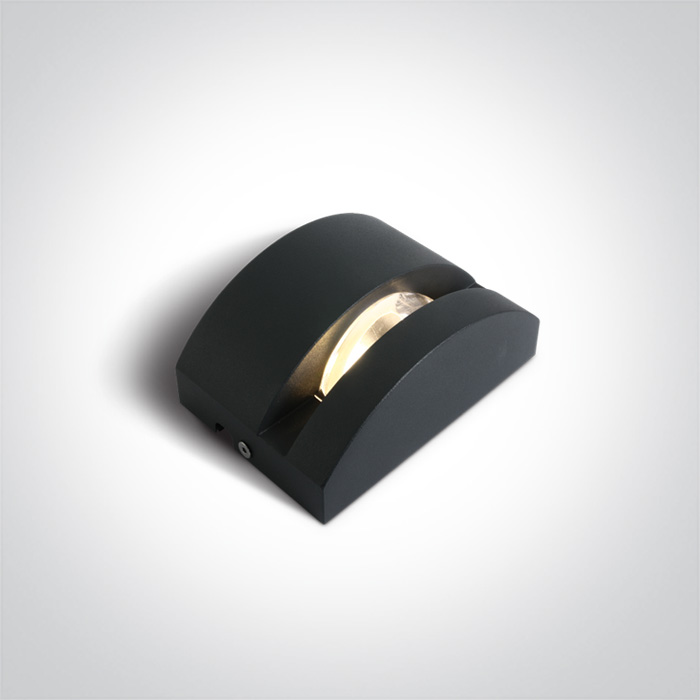

Window Frame Illumination – 67454/AN/W
2462 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

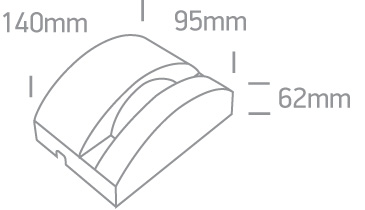

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
13 Wall & Ceiling LED
Family
Window Frame Illumination
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
140 mm
Width
95 mm
Height
62 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
Yes
Ik Rating
8
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
6W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
500mA
Excluding Gear Voltage
11V
Excluding Gear Power Watts
5,5W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Cree
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
100-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
3-6W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
500mA,
Specifications Voltage Range Vr
VR@500mA=6-12V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
330lm
Data Light Efficiency
55lm/W
Data Cri
80
Data Beam Angle
270°
Data Darklight
No
Packing Info
Info Box Length Cm
14,5cm
Info Box Width Cm
10cm
Info Box Height Cm
7,5cm
Info Box Weight Kg
0.772kg
Info Pcs Per Box
18
Info Barcode Ean Number
5291889058199
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
