The Dark Light Mirror Cylinders – 12106X

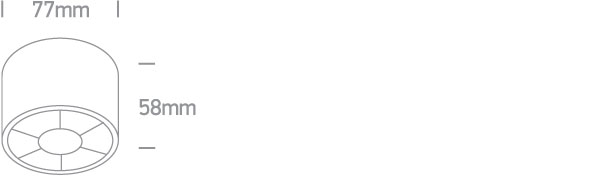

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
13 Wall & Ceiling LED
Family
The Dark Light Mirror Cylinders
Colour
Black
Material
Aluminium
Shape
Circular
Height
58 mm
Diameter
77mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
6W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
150mA
Excluding Gear Voltage
36V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
5,4W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3030
Excluding Gear Led Brand
Sanan
Excluding Gear Led Number
6
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
4,2-6,3W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
150mA,
Specifications Voltage Range Vr
VR@150mA=28-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
-20°C…+60°C
Specifications Operating Temperature
85°C
Specifications Protection
Over Load Protection, Over Voltage Protection, Short circuit Protection
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
480lm
Data Light Efficiency
80lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.322kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889074441
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
