The Dark Light Ceiling Lights – 12124H

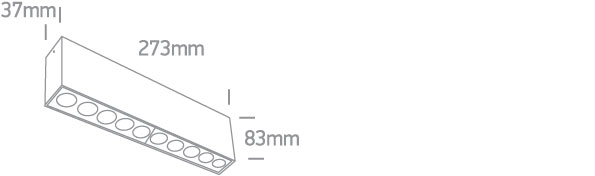

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
13 Wall & Ceiling LED
Family
The Dark Light Ceiling Lights
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
273 mm
Width
37 mm
Height
83 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
24W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
32V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
22,4W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3535
Excluding Gear Led Brand
Bridgelux
Excluding Gear Led Number
10
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
16,8-29,4W
Specifications Power Factor
0,95
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=24-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
-20°C…+45°C
Specifications Operating Temperature
85°C
Specifications Protection
Over Load Protection, Over Voltage Protection, Short circuit Protection
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1700lm
Data Light Efficiency
70,83lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.880kg
Info Pcs Per Box
30
Info Barcode Ean Number
5291889074786
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
