Outdoor Wall Up & Down Lights Die cast – 67374A

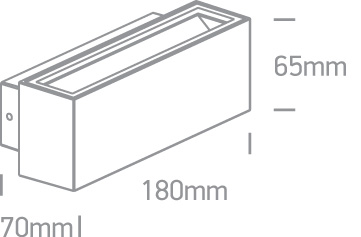

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
13 Wall & Ceiling LED
Family
Outdoor Wall Up & Down Lights Die cast
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
180 mm
Width
70 mm
Height
65 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
Yes
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
2x6W
Ip Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Voltage
38V
Excluding Gear Power Watts
11,4W
Excluding Gear Ip Rating
IP54
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Edison
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
7,2-12W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
300mA,
Specifications Voltage Range Vr
VR@300mA=26-40V
Specifications Ip Rating
IP20
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
2x420lm
Data Light Efficiency
70lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Length Cm
8cm
Info Box Width Cm
7,5cm
Info Box Height Cm
18,5cm
Info Box Weight Kg
0.800kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889043614
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
