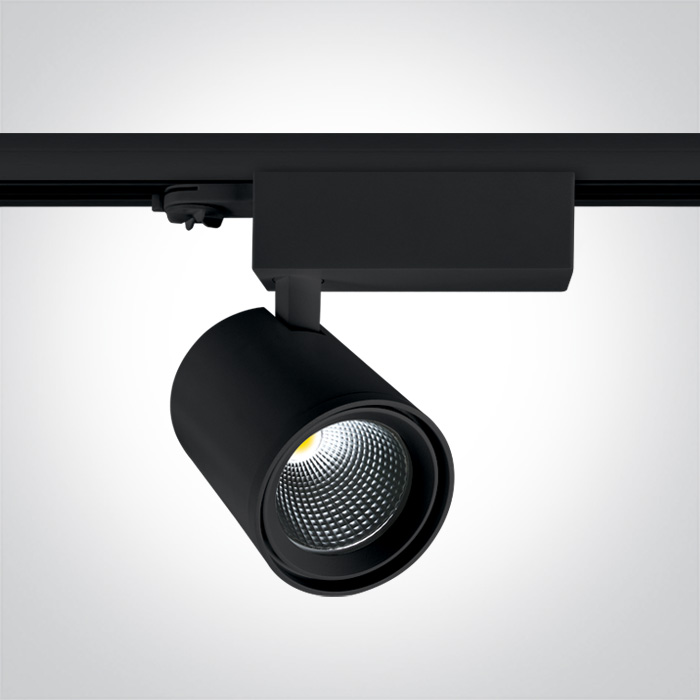

The COB Track Spots – 65619T/B/C
Out of stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

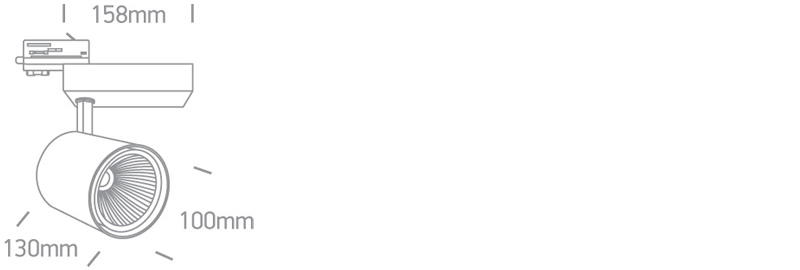

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
09 Track Lights
Family
The COB Track Spots
Colour
Black
Material
Die Cast
Shape
Circular
Height
130 mm
Diameter
100mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
Yes
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
2 Directions
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
38W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
900mA
Excluding Gear Voltage
40V
Excluding Gear Power Watts
36W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Lumileds
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
27-38W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
900mA,
Specifications Voltage Range Vr
VR@900mA=27-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
50°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Protection
Short Circuit Protection
Specifications Fast Connector
No
Specifications Manufacturer
Tridonic
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
3200lm
Data Light Efficiency
84,21lm/W
Data Cri
80
Data Beam Angle
36°
Data Darklight
No
Packing Info
Info Box Length Cm
23cm
Info Box Width Cm
24cm
Info Box Height Cm
12,5cm
Info Box Weight Kg
1.375kg
Info Pcs Per Box
16
Info Barcode Ean Number
5291889050391
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
Average Lifetime
30000hours
