The COB Shop Range – 65660BT

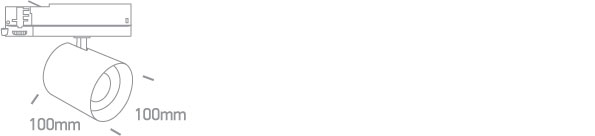

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
09 Track Lights
Family
The COB Shop Range
Colour
Black
Material
Aluminium
Shape
Circular
Height
100 mm
Diameter
100mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
Yes
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
2 Directions
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
20W/25W/30W/35W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
500mA/700mA/800mA/950mA
Excluding Gear Voltage
34V
Excluding Gear Power Watts
17W/23,8W/27,2W/32,3W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Bridgelux
Excluding Gear Led Number
1
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
Refer to table
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
500mA, 700mA, 800mA, 900mA,
Specifications Voltage Range Vr
VR@500mA=10-42V VR@700mA=10-42V VR@800mA=10-42V VR@900mA=10-40V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
KGP
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
2400lm/3000lm/3600lm/4200lm
Data Light Efficiency
120lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
No
Packing Info
Info Box Weight Kg
1.030kg
Info Pcs Per Box
10
Info Barcode Ean Number
5291889073178
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
