BLACK 40W CCTV TRACK SPOT DALI 230V – 65670CTL

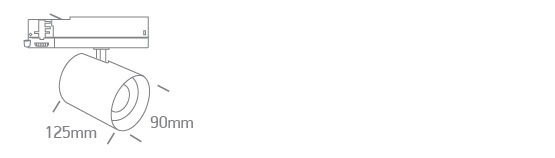

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
09 Track Lights
Family
BLACK 40W CCTV TRACK SPOT DALI 230V
Material
Aluminium
Shape
Circular
Height
125 mm
Diameter
90mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
Yes
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
2 Directions
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
40W
Ip Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer Type
Dali
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
1000mA
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
3000K-4000K Tunable
Data Lumen Output
4800lm
Data Light Efficiency
120lm/W
Data Cri
90
Data Beam Angle
38
Data Darklight
No
Packing Info
Info Box Weight Kg
0.000kg
Info Pcs Per Box
10
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
