The Trimless Mirror Range Aluminium – 50110HTR/W/W
152 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

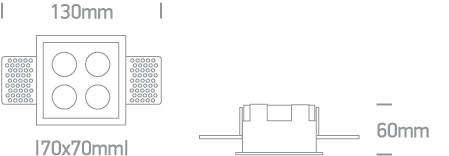

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
The Trimless Mirror Range Aluminium
Colour
White
Material
Aluminium
Shape
Rectangular
Length
70 mm
Width
70 mm
Height
60 mm
Cutout Hole Width
72mm
Cutout Hole Height
72mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
Yes
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
100mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
No
50hz
No
60hz
No
Input Voltage
220-240V
Safety Class
II
Power Watts
10W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
12V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
10W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3535
Excluding Gear Led Brand
Bridgelux
Excluding Gear Led Number
4
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
7,7-11,9W
Specifications Power Factor
0,5
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=11-17V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
-20°C…+45°C
Specifications Operating Temperature
75°C
Specifications Protection
Over Load Protection, Over Voltage Protection, Short circuit Protection
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
700lm
Data Light Efficiency
70lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.355kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889074885
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
