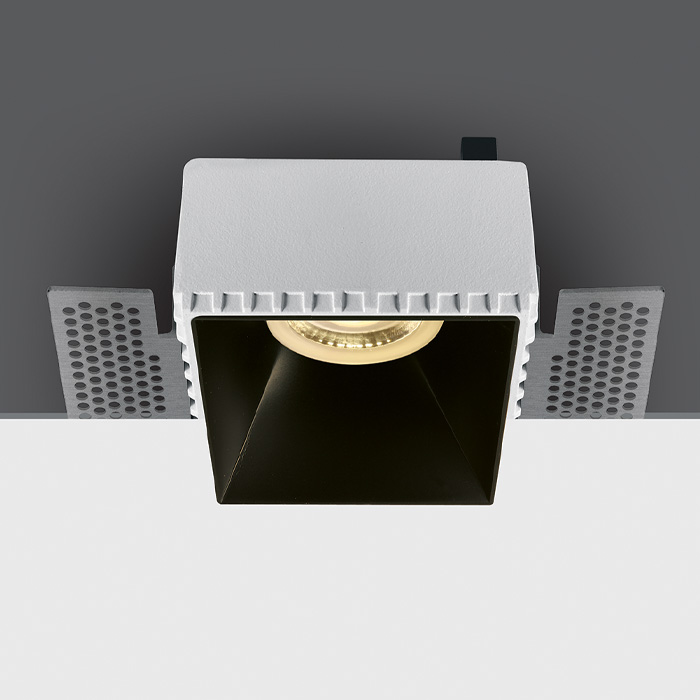

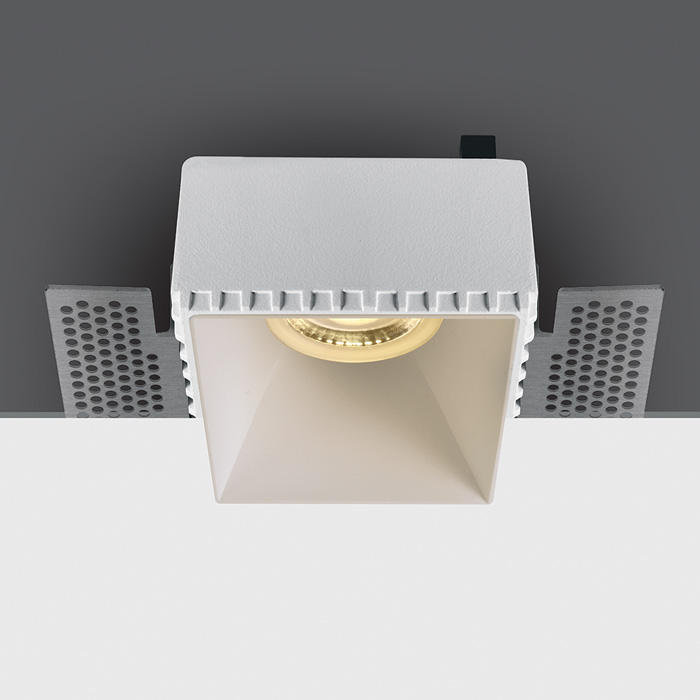

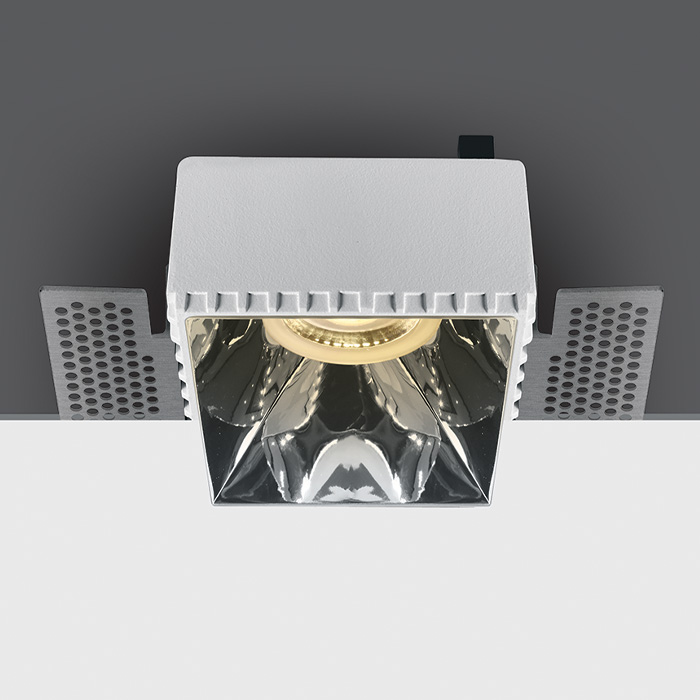

The Trimless Chill Out Range Square – 50105RM
842 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

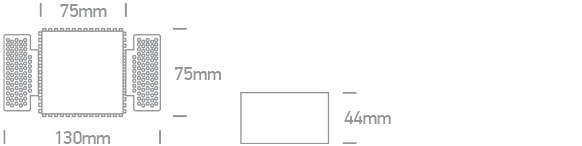

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
01 Recessed Spots Fixed
Family
The Trimless Chill Out Range Square
Colour
White
Material
Die Cast
Shape
Rectangular
Length
75 mm
Width
75 mm
Height
55 mm
Cutout Hole Width
85mm
Cutout Hole Height
75mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
Yes
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
130mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
10W
Ip Rating
IP20
Light Source
Replaceable lamp
Number Of Lamps
1
Cable Length
15cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
Yes
Packing Info
Info Box Length Cm
10cm
Info Box Width Cm
7cm
Info Box Height Cm
15cm
Info Box Weight Kg
0.258kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889053637
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
