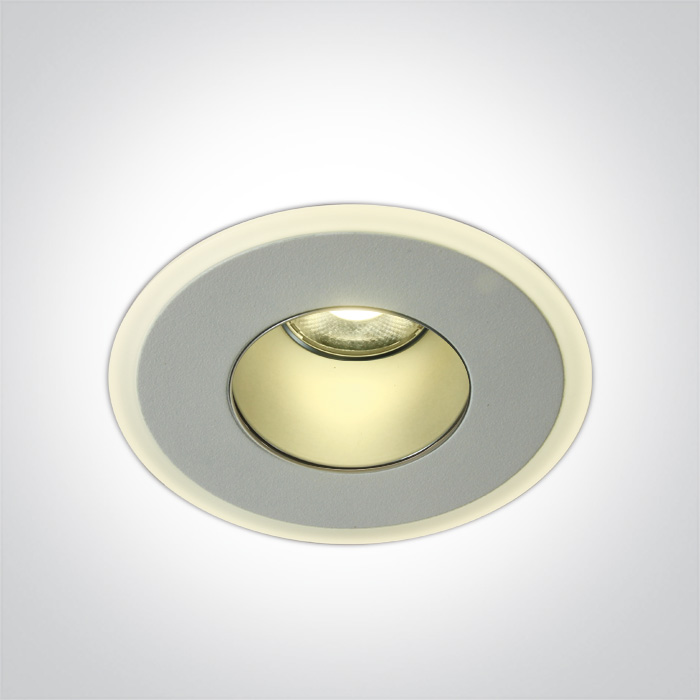

The LED Decorative Range - 10108J/W/W
IP Rating IP40
Darklight Yes

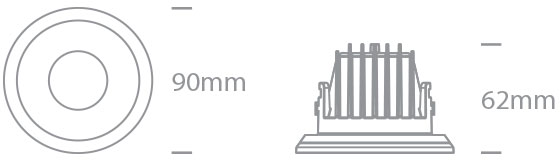

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
The LED Decorative Range
Colour
White
Material
Die Cast
Shape
Circular
Height
62 mm
Diameter
90mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
100mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
8
Ip Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
200mA
Excluding Gear Voltage
34,3V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6,86W
Excluding Gear Ip Rating
IP40
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB+SMD 4014
Excluding Gear Led Brand
Citizen
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
6-8W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
200mA,
Specifications Voltage Range Vr
VR@200mA=30-40V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Ambient Temperature
45°C
Specifications Operating Temperature
90°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
560lm
Data Light Efficiency
70lm/W
Data Cri
80
Data Beam Angle
24°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.286kg
Info Pcs Per Box
30
Info Barcode Ean Number
5291889076155
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years

The LED Decorative Range – 10108J/W/W

10108J/W/W

462 in stock

  • 8W COB + SMD LED Dark light recessed spot
  • Supplied with 200mA driver
  • Complies with standard EN60598-1 and any other specific standards.
