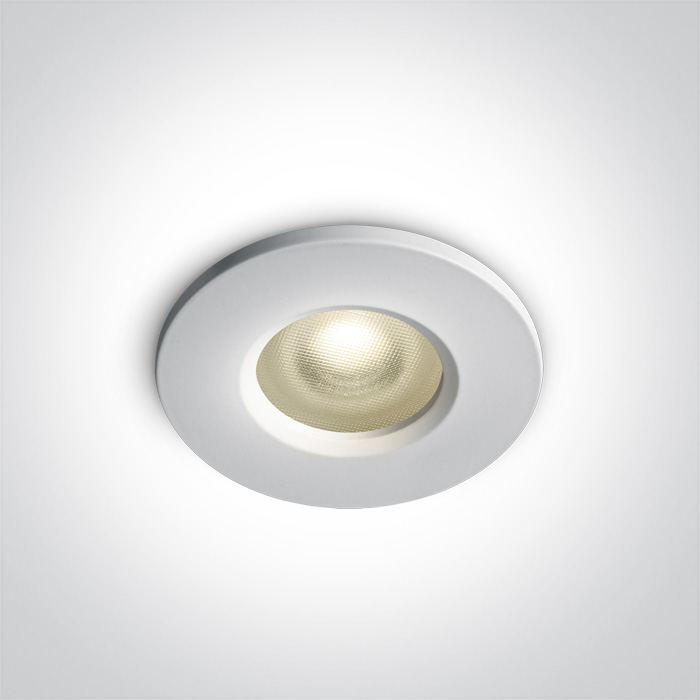

The IP65 Bathroom Range Aluminium - 10105R1P/W
IP Rating IP65

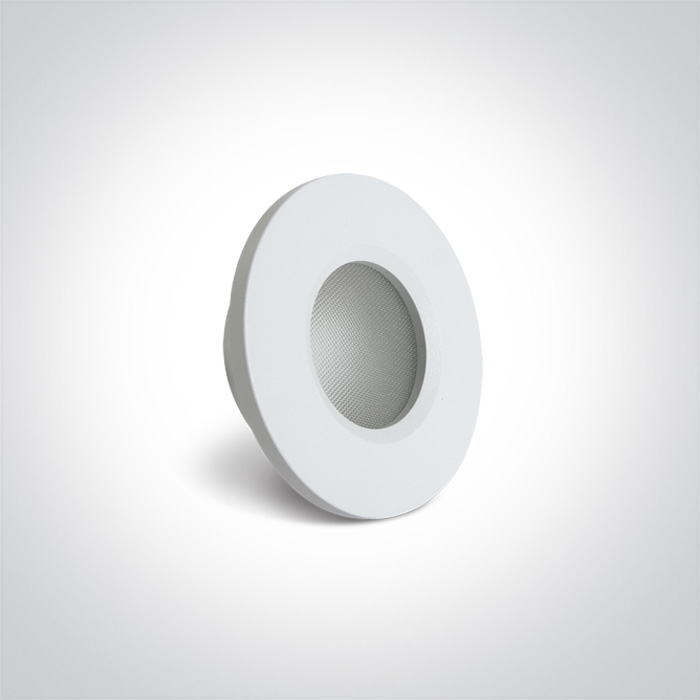

The IP65 Bathroom Range Aluminium - 10105R1P/W - Image 2

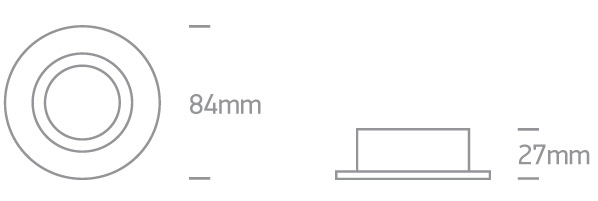

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
01 Recessed Spots Fixed
Family
The IP65 Bathroom Range Aluminium
Colour
White
Material
Aluminium
Shape
Circular
Height
27 mm
Diameter
84mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
120mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
100-240V
Safety Class
I
Power Watts
10W
Ip Rating
IP65
Light Source
Replaceable lamp
Lamp Holder
GU10
Number Of Lamps
1
Cable Length
15cm
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
No
Packing Info
Info Box Weight Kg
0.202kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889063094
Customs
Tariff
9405413990
Energy Certificates - Warranty
Energy Consumption
0
Warranty
5 Years

The IP65 Bathroom Range Aluminium – 10105R1P/W

10105R1P/W

Out of stock

  • IP65 Recessed MR16 spot with prismatic glass and GU10 lampholder
  • Suitable for bathroom installation
  • Complies with standard EN60598-1 and any other specific standards.
