The Interchangable Rings Range Aluminium – 51112H/W/W
129 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

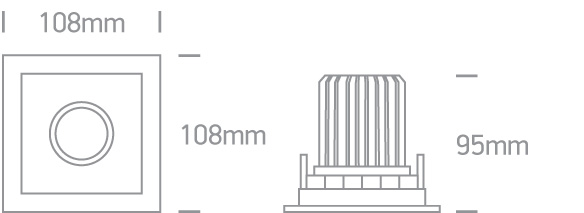

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
04 Recessed Spots Adjustable LED
Family
The Interchangable Rings Range Aluminium
Colour
White
Material
Aluminium
Shape
Rectangular
Length
108 mm
Width
108 mm
Height
95 mm
Cutout Hole Width
95mm
Cutout Hole Height
95mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
120mm
Indoor
Yes
Outdoor
No
Adjustable
1 Direction
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
12W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Voltage
36V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
10,8V
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Cree
Excluding Gear Led Number
1
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
9-12W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
300mA,
Specifications Voltage Range Vr
VR@300mA=30-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
940lm
Data Light Efficiency
80lm/W
Data Cri
80
Data Beam Angle
60°
Data Darklight
No
Packing Info
Info Box Length Cm
12cm
Info Box Width Cm
12cm
Info Box Height Cm
12cm
Info Box Weight Kg
0.480kg
Info Pcs Per Box
30
Info Barcode Ean Number
5291889051343
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
