The Dual Ring Range Round - 11105AC/AL
Special Offer
The Dual Ring Range Round - 11105AC/AL - Image 2

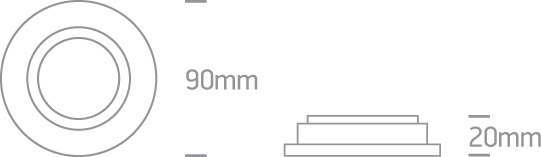

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
03 Recessed Spots Adjustable
Family
The Dual Ring Range Round
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
20 mm
Diameter
90mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
60mm
Indoor
Yes
Outdoor
No
Adjustable
1 Direction
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Voltage
Excluding Gear Input Voltage
12V AC/DC
Excluding Gear Safety Class
III
Excluding Gear Power Watts
50W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
Replaceable lamp
Excluding Gear Lamp Holder
GU5.3
Excluding Gear Number Of Lamps
1
Excluding Gear Dimmable
No
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
No
Packing Info
Info Box Length Cm
10cm
Info Box Width Cm
9,5cm
Info Box Height Cm
5cm
Info Box Weight Kg
0.168kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889016106
Customs
Tariff
9405413990
Energy Certificates - Warranty
Energy Consumption
0
Warranty
5 Years

The Dual Ring Range Round – 11105AC/AL

11105AC/AL

638 in stock

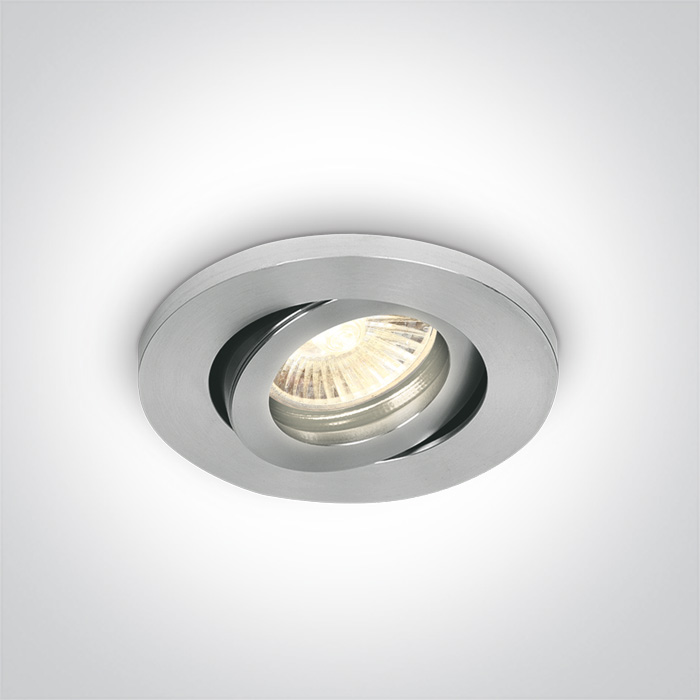

  • Recessed adjustable MR16 spot with GU5
  • 3 lampholder
  • Complies with standard EN60598-1 and any other specific standards.
