Awaiting product image
IP Rating IP20 | IP20
Darklight Yes | Yes

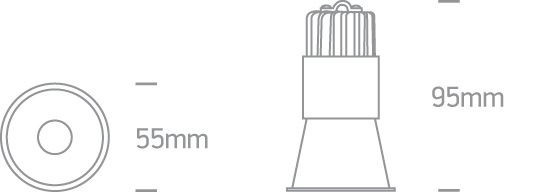

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
The Dark Light Pro Range Aluminium
Colour
Black
Material
Aluminium
Shape
Circular
Height
95 mm
Diameter
55mm
Cutout Hole Diameter
50mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
120mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
5W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
300mA
Excluding Gear Voltage
14,9V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
4,5W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
1
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
4,2-7,25W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
300mA,
Specifications Voltage Range Vr
VR@300mA=14-24v
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Fast Connector
No
Specifications Manufacturer
LIFUD
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
300lm
Data Light Efficiency
60lm/W
Data Cri
80
Data Beam Angle
24°
Data Darklight
Yes
Packing Info
Info Box Length Cm
9cm
Info Box Width Cm
7cm
Info Box Height Cm
12cm
Info Box Weight Kg
0.190kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889057352
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

The Dark Light Pro Range Aluminium – 10105FD

10105FD
10105FD
From £24.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 695 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
