The COB Recessed Cylinders – 51211C

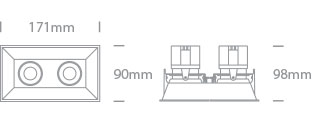

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
04 Recessed Spots Adjustable LED
Family
The COB Recessed Cylinders
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
171 mm
Width
90 mm
Height
98 mm
Cutout Hole Width
85mm
Cutout Hole Height
165mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
110mm
Indoor
Yes
Outdoor
No
Adjustable
2 Directions
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
2x11W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
250mA
Excluding Gear Voltage
37V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
2x9,25W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Luminus
Excluding Gear Led Number
2
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
7,5-10W
Specifications Power Factor
0,8
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
250mA,
Specifications Voltage Range Vr
VR@250mA=30-40V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Specifications Manufacturer
KEGU
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
2x820lm
Data Light Efficiency
74,5lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.720kg
Info Pcs Per Box
20
Info Barcode Ean Number
5291889059547
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
