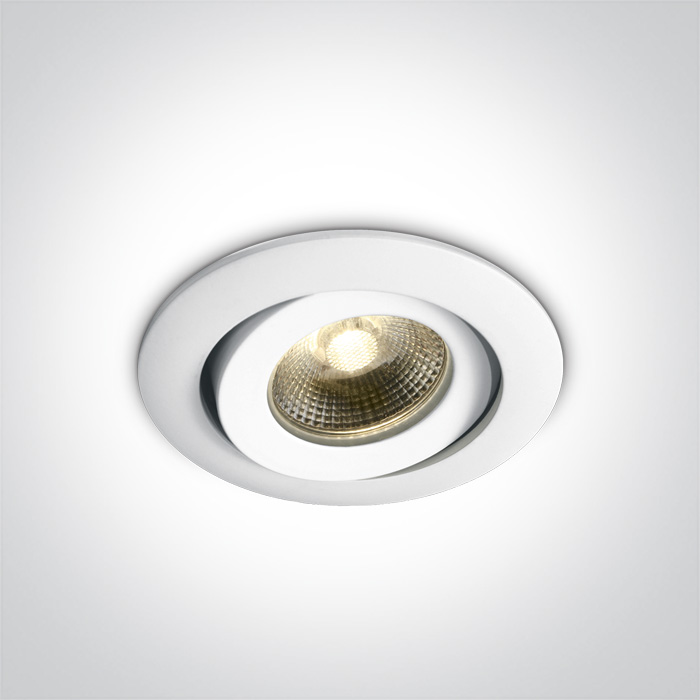

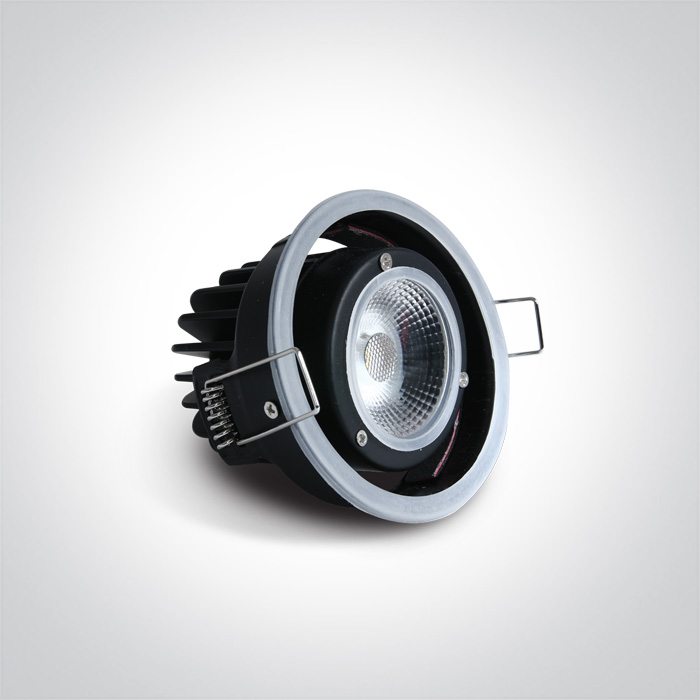

The COB Fire Rated – 11106PF/C
48 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

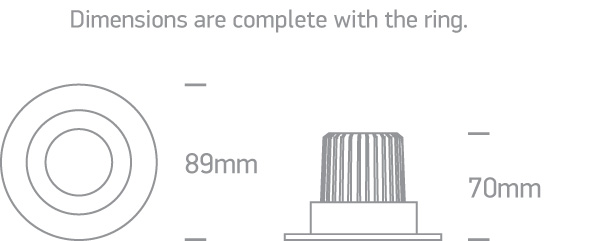

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
04 Recessed Spots Adjustable LED
Family
The COB Fire Rated
Colour
White
Material
Die Cast
Shape
Circular
Height
70 mm
Diameter
89mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
90mm
Indoor
Yes
Outdoor
No
Adjustable
1 Direction
Fire Rated
Yes
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Bridgelux
Excluding Gear Led Number
1
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
1
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
530lm
Data Light Efficiency
88,33lm/W
Data Cri
80
Data Beam Angle
40°
Data Darklight
No
Packing Info
Info Box Length Cm
12cm
Info Box Width Cm
11cm
Info Box Height Cm
8,5cm
Info Box Weight Kg
0.325kg
Info Pcs Per Box
20
Info Barcode Ean Number
5291889047155
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
