Awaiting product image
Darklight Yes | Yes | Yes | Yes
MUST BE ORDERED SEPARATELY
The 700mA Range Constant current - 89015A

The 700mA Range Constant current - 89015A

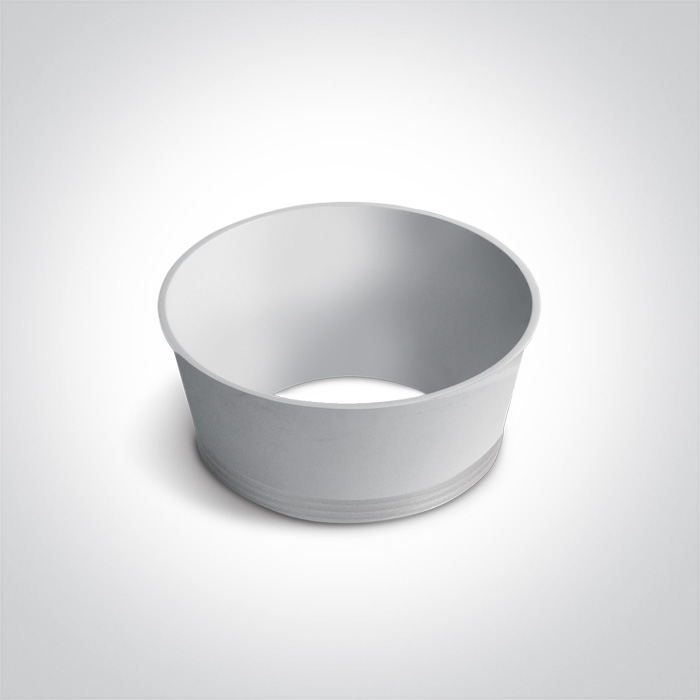

The COB Darklight Interchangeable Reflector - 050280 - White

10112K/W/W - White

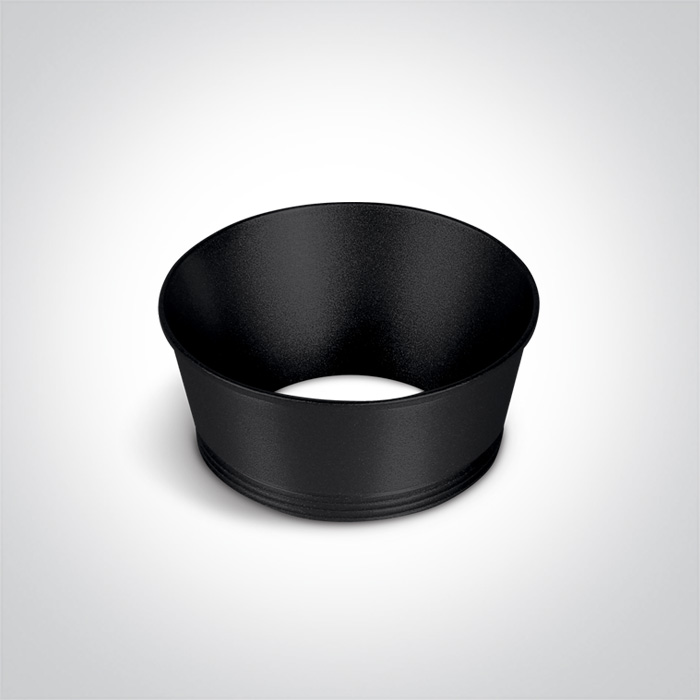

The COB Darklight Interchangeable Reflector - 050280 - Black

10112K/W/W - Black

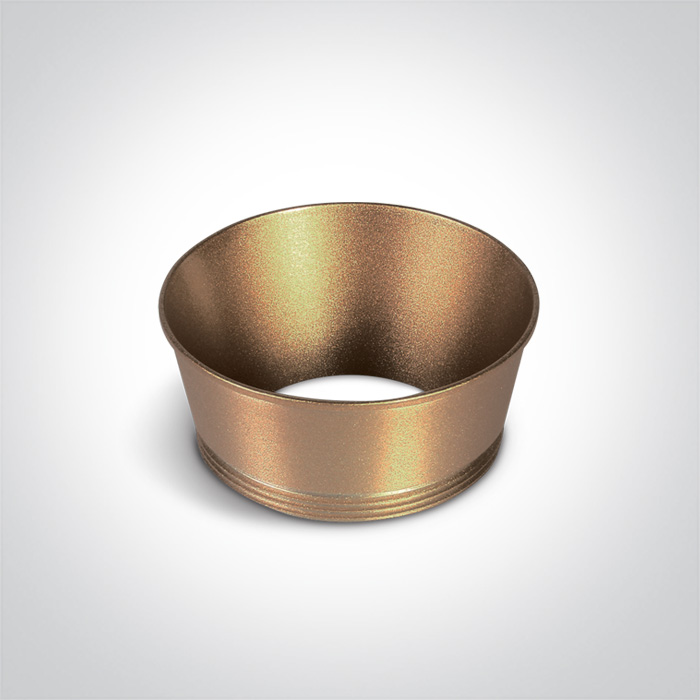

The COB Darklight Interchangeable Reflector - 050280 - Brass Reflector

10112K/W/W - Brass Reflector
RELATED PRODUCTS
The 700mA TRIAC Dimmable Range Constant current - 89015AT

The 700mA TRIAC Dimmable Range Constant current - 89015AT

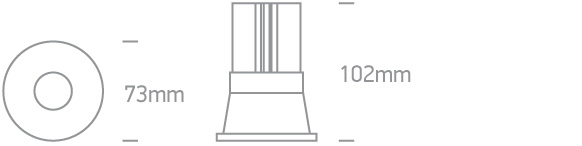

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
The COB Dark Light Range Interchangeable Reflector
Colour
Black
Material
Die Cast
Shape
Circular
Height
102 mm
Diameter
73mm
Cutout Hole Diameter
67mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
120mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
18V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
12W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Bridgelux
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
2
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
1100lm
Data Light Efficiency
91,67lm/W
Data Cri
90
Data Beam Angle
38°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.286kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889072409
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years

The COB Dark Light Range Interchangeable Reflector – 10112K

10112K
10112K
From £27.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 0 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
