The 12W COB IP65 & IP64 Range – 10112P

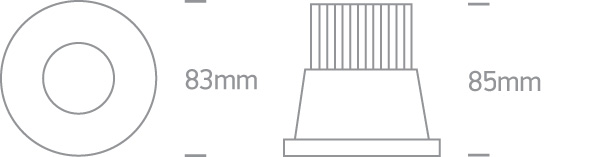

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
The 12W COB IP65 & IP64 Range
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
85 mm
Diameter
83mm
Cutout Hole Diameter
70mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
105mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
N/A
Excluding Gear Safety Class
III
Excluding Gear Power Watts
12W
Excluding Gear Ip Rating
IP64
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Bridgelux
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
2
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1100lm
Data Light Efficiency
91,67lm/W
Data Cri
80
Data Beam Angle
40°
Data Darklight
Yes
Packing Info
Info Box Length Cm
9cm
Info Box Width Cm
9cm
Info Box Height Cm
10cm
Info Box Weight Kg
0.298kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889038955
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
