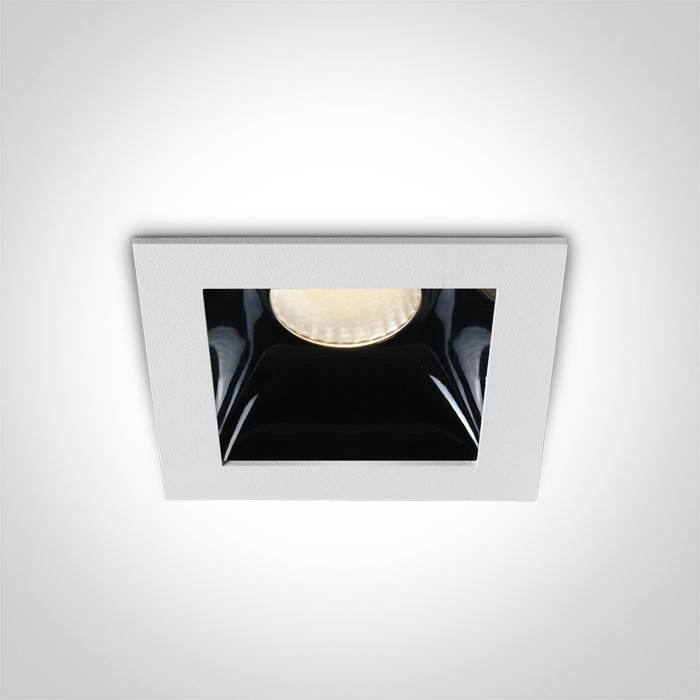

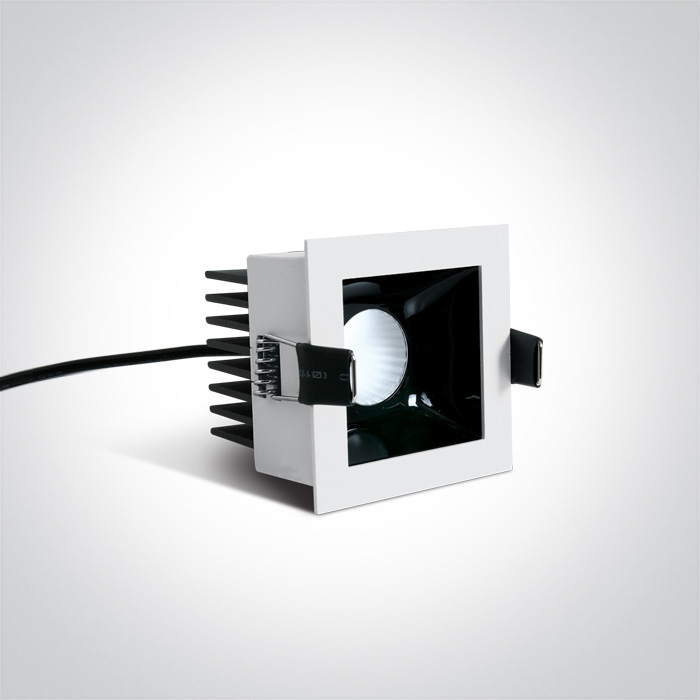

Medium Shop Square Boxes – 50107B/W/W
5 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

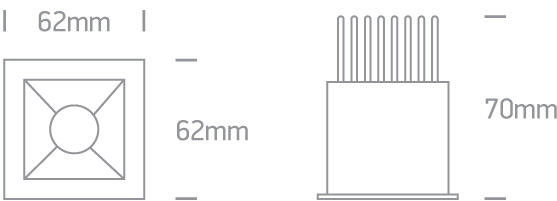

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
Medium Shop Square Boxes
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
62 mm
Width
62 mm
Height
70 mm
Cutout Hole Width
57mm
Cutout Hole Height
57mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
90mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics

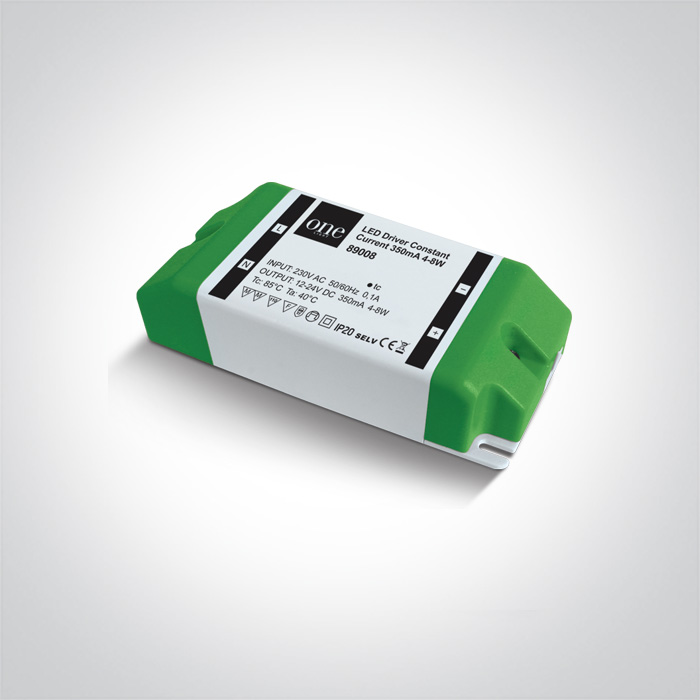

Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6,5W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Led Brand
Citizen
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
1
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
550lm
Data Light Efficiency
84,61
Data Cri
90
Data Beam Angle
36°
Data Darklight
No
Packing Info
Info Box Weight Kg
0.253kg
Info Pcs Per Box
60
Info Barcode Ean Number
5291889055259
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
