LED Spots – 10106L

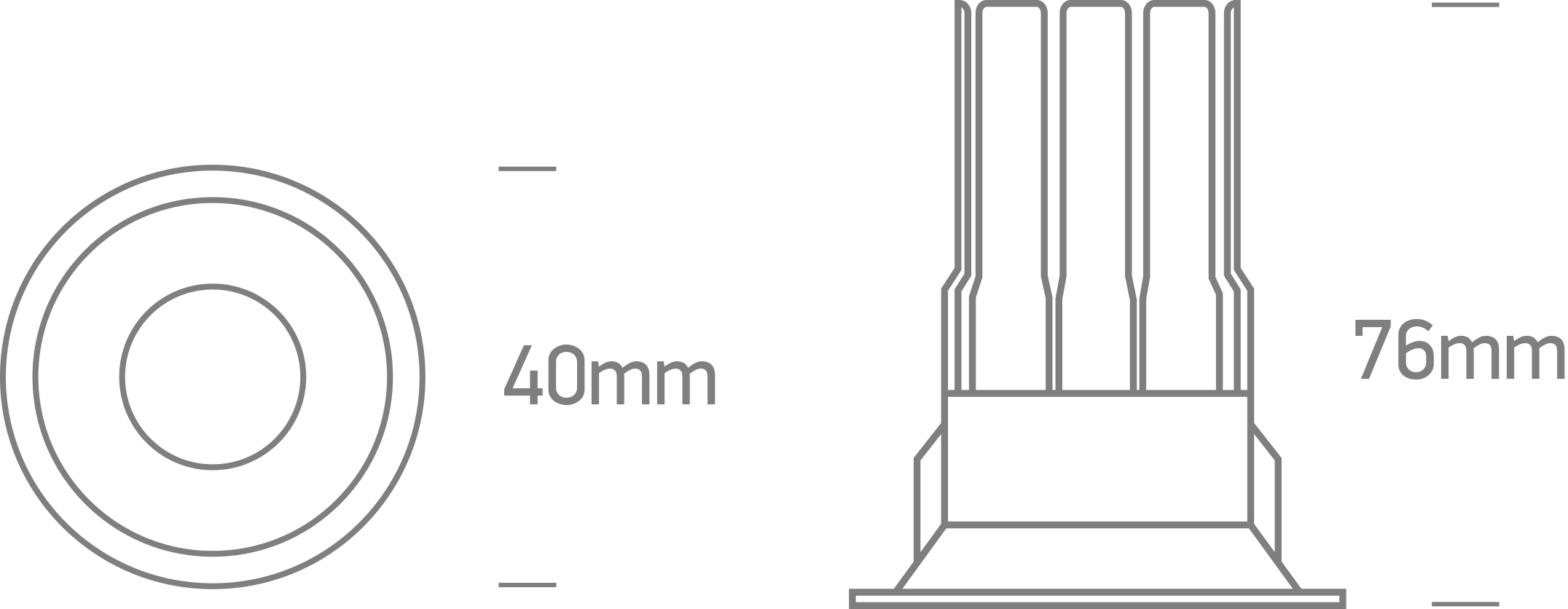

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
LED Spots
Colour
Black
Material
Aluminium
Shape
Circular
Height
76 mm
Diameter
40mm
Cutout Hole Diameter
33mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
80mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics

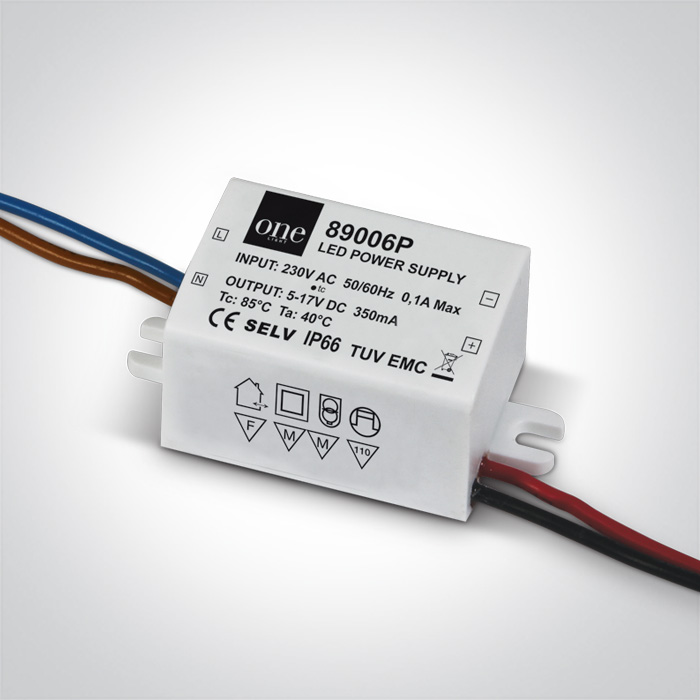

Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Voltage
18V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
6W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Brand
Bridgelux
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
1
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
360lm
Data Light Efficiency
60lm/W
Data Cri
90
Data Beam Angle
40°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.114kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889077633
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years
