Dark Light Tubes - 50906C/W/W
IP Rating IP20
Darklight Yes

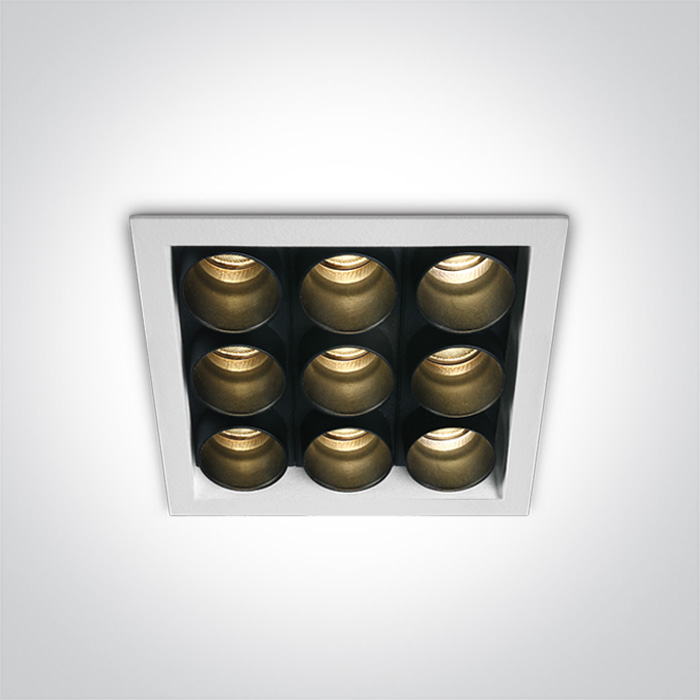

Dark Light Tubes - 50906C/W/W - Image 2

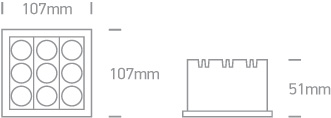

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
Dark Light Tubes
Colour
White
Material
Die Cast
Shape
Rectangular
Length
107 mm
Width
107 mm
Height
51 mm
Cutout Hole Width
96mm
Cutout Hole Height
96mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
70mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
22W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
30V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
21W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3535
Excluding Gear Led Brand
Cree
Excluding Gear Led Number
9
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
17,5-23,8W
Specifications Power Factor
0,92
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=25-34V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
45°C
Specifications Operating Temperature
85°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Specifications Manufacturer
KEGU
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1760lm
Data Light Efficiency
80lm/W
Data Cri
85
Data Beam Angle
25°
Data Darklight
Yes
Packing Info
Info Box Weight Kg
0.555kg
Info Pcs Per Box
18
Info Barcode Ean Number
5291889067054
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years

Dark Light Tubes – 50906C/W/W

50906C/W/W

36 in stock

  • 22W SMD LED recessed spot IP20
  • Complete with 700mA driver
  • Complies with standard EN60598-1 and any other specific standards.
