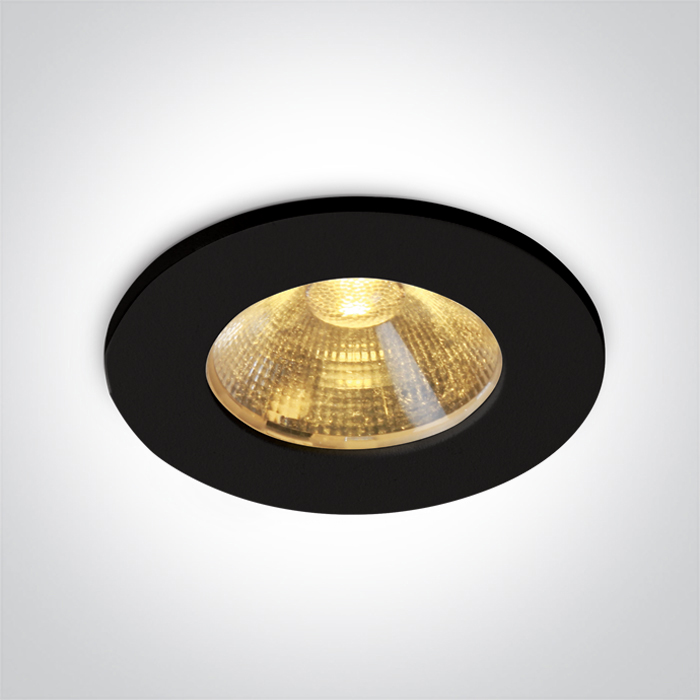

COB LED Recessed Spot - 10103C
New

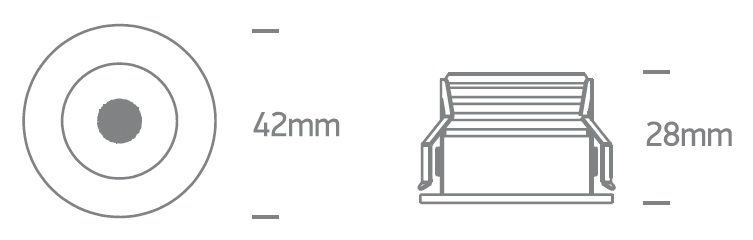

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
02 Recessed Spots Fixed LED
Family
COB LED Recessed Spot
Material
Aluminium
Shape
Circular
Height
28 mm
Diameter
42mm
Cutout Hole Diameter
36mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
38mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
350mA
Excluding Gear Safety Class
III
Excluding Gear Power Watts
3W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
COB
Excluding Gear Dimmable
Yes
Excluding Gear Cable Length
40cm
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
1
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Lumen Output
300lm
Data Light Efficiency
100m/W
Data Cri
90
Data Beam Angle
40
Data Darklight
No
Packing Info
Info Box Weight Kg
0.066kg
Info Pcs Per Box
100
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
5 Years

COB LED Recessed Spot – 10103C

10103C
10103C
From £14.50

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 0 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.

New to ONE Light UK?

Register for a Trade Account
  • Access our full lighting range
  • Unlock all product pricing and stock availability
  • Project pricing
  • Streamline your ordering process
  • Automatic additional discounts on larger order values
REGISTER NOW
I HAVE AN ACCOUNT
