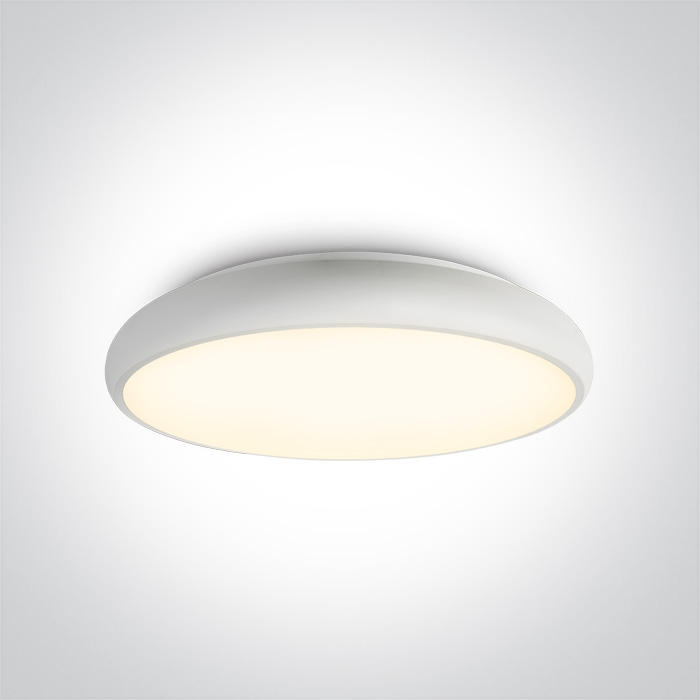

The LED Slim Line Plafo – 62160/W/W
31 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

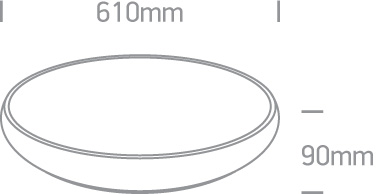

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
The LED Slim Line Plafo
Colour
White
Material
Metal
Shape
Circular
Height
90 mm
Diameter
610mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
62W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
1500mA
Excluding Gear Voltage
39V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
58,5W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Sanan
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
4
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
37,5-63W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
1500mA,
Specifications Voltage Range Vr
VR@1500mA=25-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
40°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connection Type
Other
Specifications Fast Connector
Yes
Specifications Manufacturer
Lifud
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
3600lm
Data Light Efficiency
58,06lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Length Cm
68cm
Info Box Width Cm
68cm
Info Box Height Cm
12cm
Info Box Weight Kg
6.000kg
Info Pcs Per Box
1
Info Master Carton Length Cm
68cm
Info Master Carton Width Cm
68cm
Info Master Carton Height Cm
12cm
Info Master Carton Weight Kg
6,1Kg
Info Barcode Ean Number
5291889056911
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
