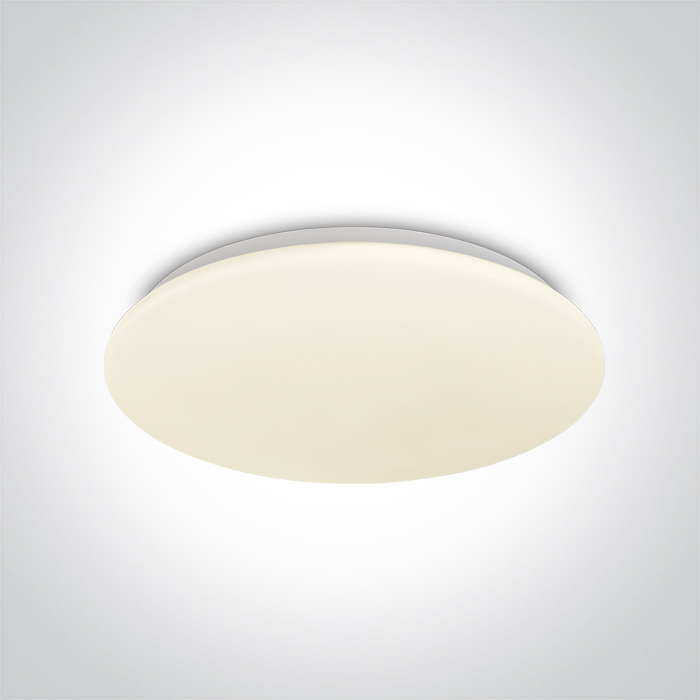

The LED Plafo Range – 62026D

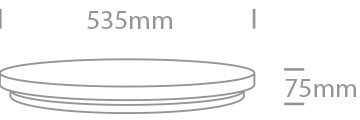

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
The LED Plafo Range
Colour
White
Material
Metal
Diffuser Material
Plastic
Shape
Circular
Height
75 mm
Diameter
535mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
50W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
430mA
Excluding Gear Voltage
106,9V
Excluding Gear Power Watts
45,96
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Sanan
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
38,7-56W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current
430mA
Specifications Output Voltage
90-130V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
3750lm
Data Light Efficiency
75lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Length Cm
55cm
Info Box Width Cm
55cm
Info Box Height Cm
7,8cm
Info Box Weight Kg
2.240kg
Info Pcs Per Box
5
Info Barcode Ean Number
5291889069249
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
