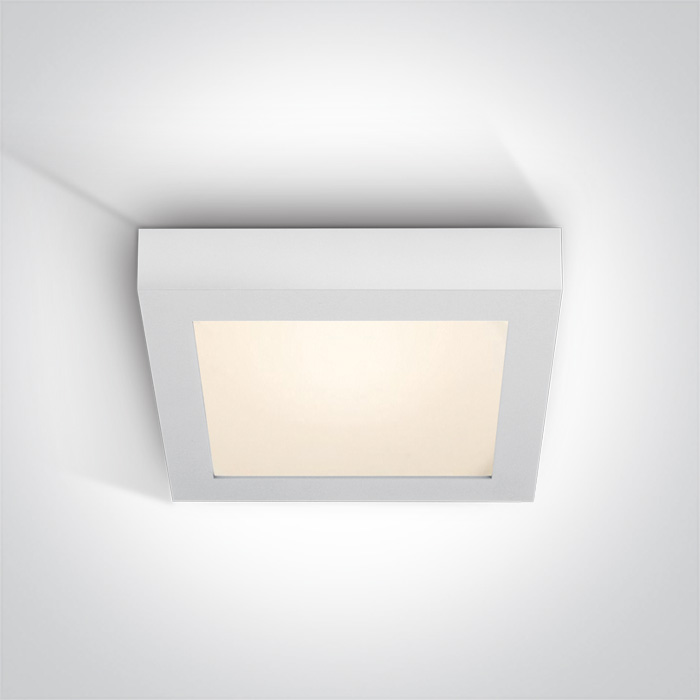

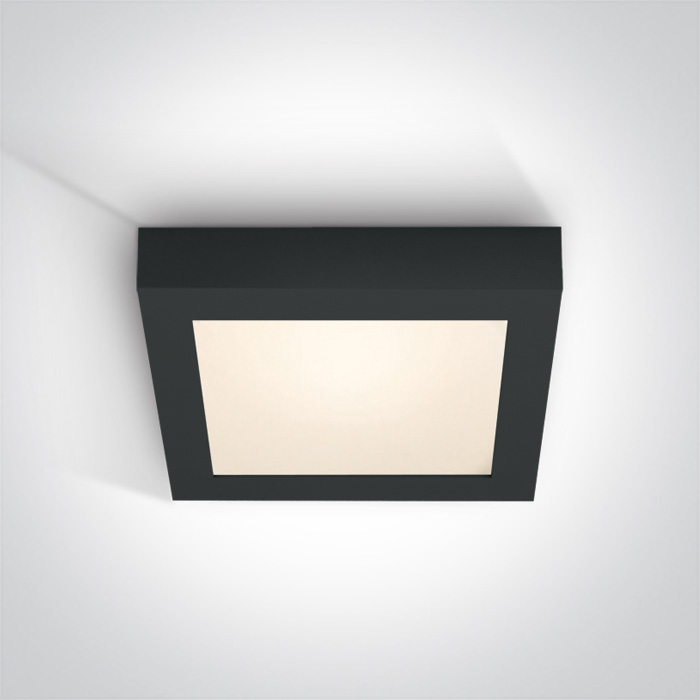

The LED Panel Plafo Square - 62122F
IP Rating IP40
New
The LED Panel Plafo Square - 62122F - Image 2
The LED Panel Plafo Square - 62122F - Image 3
DIMENSIONS
DOWNLOADS
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
Variable LED Slim Plafo
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
220 mm
Width
220 mm
Height
39 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
22W
Ip Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
700mA
Excluding Gear Voltage
28V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
18,2W
Excluding Gear Ip Rating
IP40
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD
Excluding Gear Led Brand
Sanan
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
12,6-21W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=18-30V
Specifications Output Current
500mA
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
45°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
CCT V
Data Colour Temperature
3000K
Data Lumen Output
2000lm
Data Light Efficiency
90,90lm/W
Data Cri
90
Data Darklight
No
Packing Info
Info Box Length Cm
23,5cm
Info Box Width Cm
22cm
Info Box Height Cm
4,5cm
Info Box Weight Kg
1.210kg
Info Pcs Per Box
10
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years

The LED Panel Plafo Square – 62122F

62122F
62122F
From £52.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 195 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
