The LED Decorative Plafo - 62142N
IP Rating IP20
New

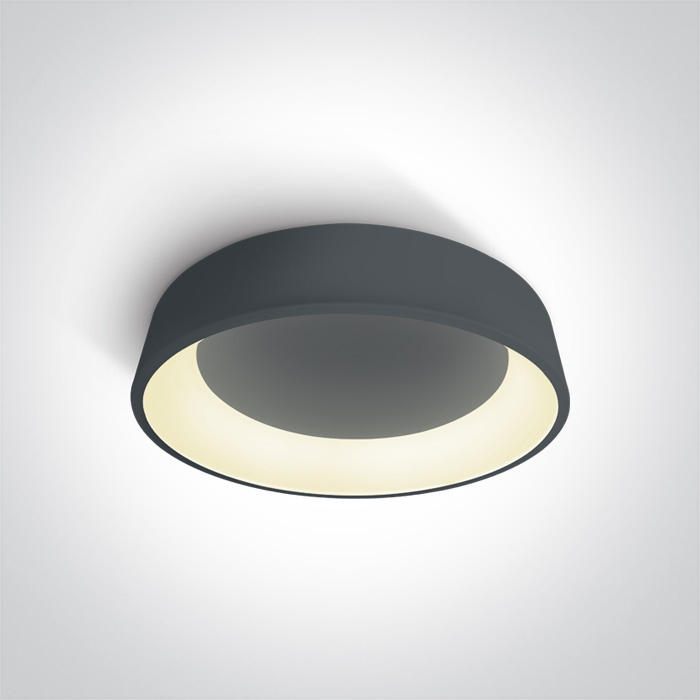

The LED Decorative Plafo - 62142N - Image 2

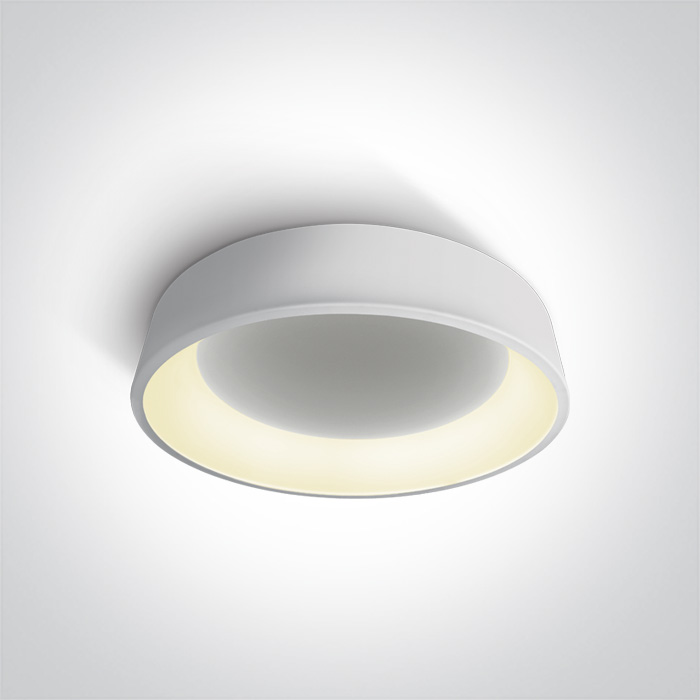

The LED Decorative Plafo - 62142N - Image 3
The LED Decorative Plafo - 62142N - Image 4
The LED Decorative Plafo - 62142N - Image 5

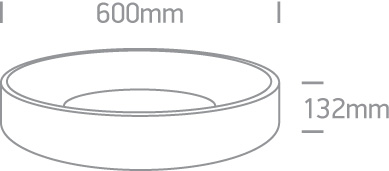

DIMENSIONS
DOWNLOADS
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
ANTHRACITE PLAFO 42W CCTV IP20 230V DIMMABLE
Colour
Anthracite
Material
Aluminium
Shape
Circular
Height
132 mm
Diameter
600mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
42W
Ip Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer Type
Triac
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
1050mA
Excluding Gear Voltage
38V
Excluding Gear Power Watts
39,9W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD
Excluding Gear Led Brand
Bridgelux
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
34,65-44,1W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
Yes
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
1050mA,
Specifications Voltage Range Vr
VR@1050mA=33-42v
Specifications Output Current
1050mA
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
Yes
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Dimmer Type
N/A
Specifications Fast Connector
No
Specifications Manufacturer
TRIDONIC
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
N/A
Characteristics Maximum Fan Flow Rate
N/A
Characteristics Fan Power Input
N/A
Characteristics Service Value
N/A
Characteristics Stand By Power
N/A
Characteristics Sound Power
N/A
Characteristics Air Velocity
N/A
Characteristics Rpm
N/A
Characteristics Speeds
N/A
Illumination Data
Data Colour Code
CCT V
Data Colour Temperature
3000K
Data Lumen Output
3570lm
Data Light Efficiency
85lm/W
Data Cri
90
Data Beam Angle
120
Data Darklight
No
Packing Info
Info Box Weight Kg
3.800kg
Info Pcs Per Box
1
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years

The LED Decorative Plafo – 62142N

62142N
62142N
From £195.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 97 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.

New to ONE Light UK?

Register for a Trade Account
  • Access our full lighting range
  • Unlock all product pricing and stock availability
  • Project pricing
  • Streamline your ordering process
  • Automatic additional discounts on larger order values
REGISTER NOW
I HAVE AN ACCOUNT
