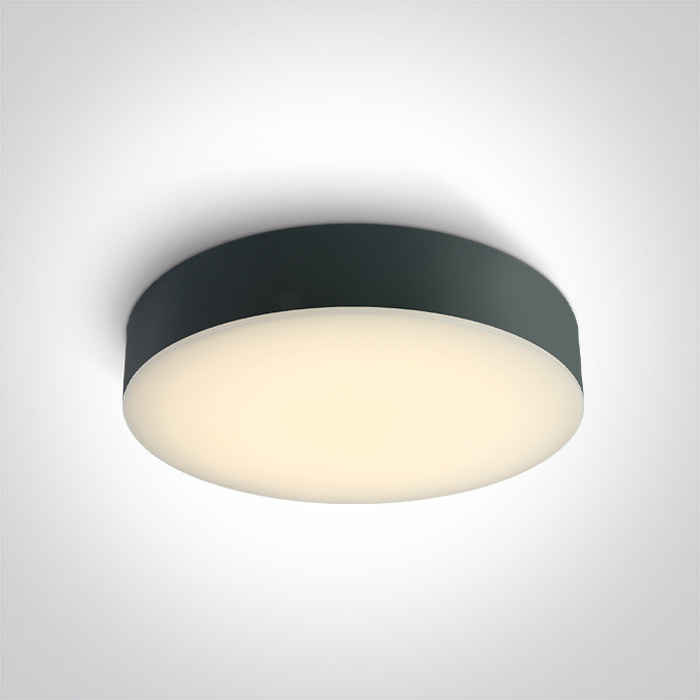

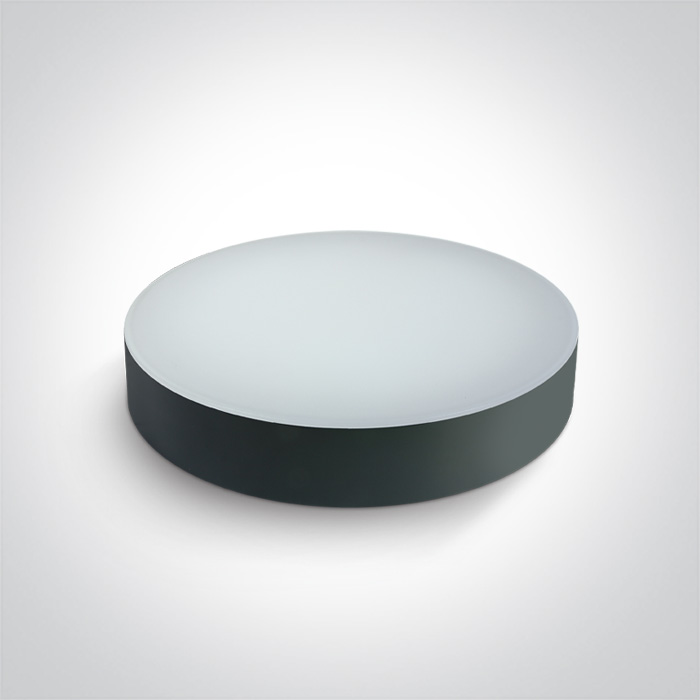

The IP65 CCT V Plafo – 67498/AN/V
87 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

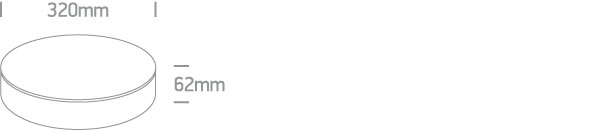

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
The IP65 CCT V Plafo
Material
Plastic
Diffuser Material
PC
Shape
Circular
Height
62 mm
Diameter
320mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
Yes
Adjustable
No
Ik Rating
6
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
20W
Ip Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
500mA
Excluding Gear Voltage
38V
Excluding Gear Power Watts
19W
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
240
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
12,5-21W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
500mA,
Specifications Voltage Range Vr
VR@500mA=25-42V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
Eaglerise
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White - Cool White - Daylight
Data Lumen Output
1300lm
Data Light Efficiency
65lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Weight Kg
1.460kg
Info Pcs Per Box
10
Info Barcode Ean Number
5291890000000
Customs
Tariff
9405114090
Energy Certificates - Warranty
Warranty
2 Years
