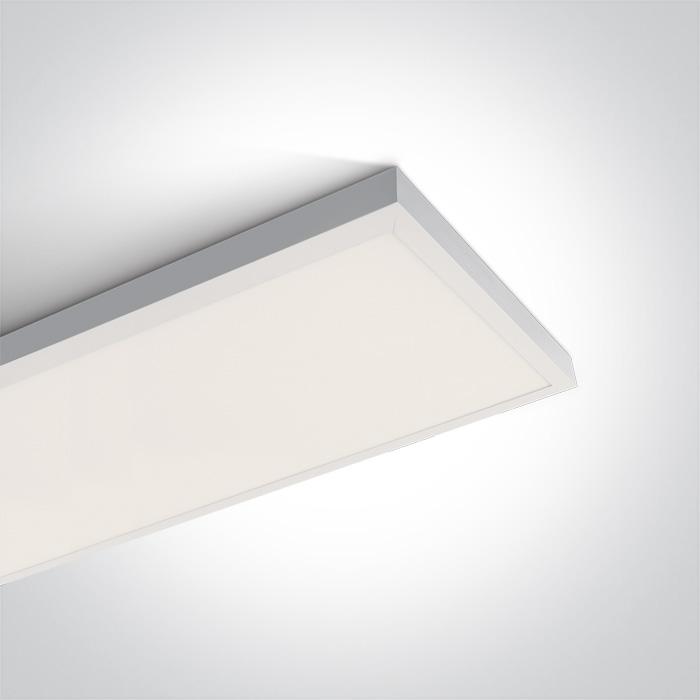

LED Aluminium Panel Range Backlit – 62140RE/W/C
45 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

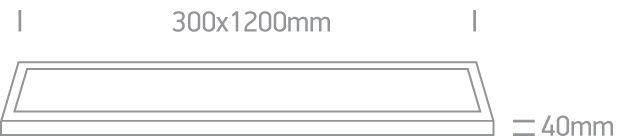

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
14 Plafo
Family
LED Aluminium Panel Range Backlit
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1200 mm
Width
300 mm
Height
42 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
40W
Ip Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
1000mA
Excluding Gear Voltage
38V
Excluding Gear Safety Class
III
Excluding Gear Power Watts
38W
Excluding Gear Ip Rating
IP40
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Sanan
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear Fast Connector Type
4
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
28,5-38W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
1000mA,
Specifications Voltage Range Vr
VR@1000mA=30-40V
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Ambient Temperature
40°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Cable
Specifications Fast Connection Type
Other
Specifications Fast Connector
Yes
Specifications Manufacturer
AGT
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
3600lm
Data Light Efficiency
90lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Length Cm
133cm
Info Box Width Cm
36cm
Info Box Height Cm
8,5cm
Info Box Weight Kg
2.820kg
Info Pcs Per Box
4
Info Barcode Ean Number
5291889052166
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
