Up & Down LED Linear Profiles – 38140AU

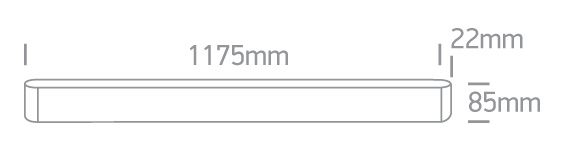

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
11 Office & Kitchen
Family
Up & Down LED Linear Profiles
Colour
Black
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
1175 mm
Width
22 mm
Height
85 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
Yes
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
40W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
900mA
Excluding Gear Voltage
40V
Excluding Gear Power Watts
36W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
144 Up 288 Down
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
27-38W
Specifications Power Factor
0,95
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
900mA,
Specifications Voltage Range Vr
VR@900mA=30-42V
Specifications Ip Rating
IP20
Specifications Safety Class
I
Specifications Dimmable
No
Specifications Housing Material
Metal
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
BOKE
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
3600lm
Data Light Efficiency
90lm/W
Data Cri
90
Data Darklight
No
Packing Info
Info Box Weight Kg
2.058kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889063896
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
