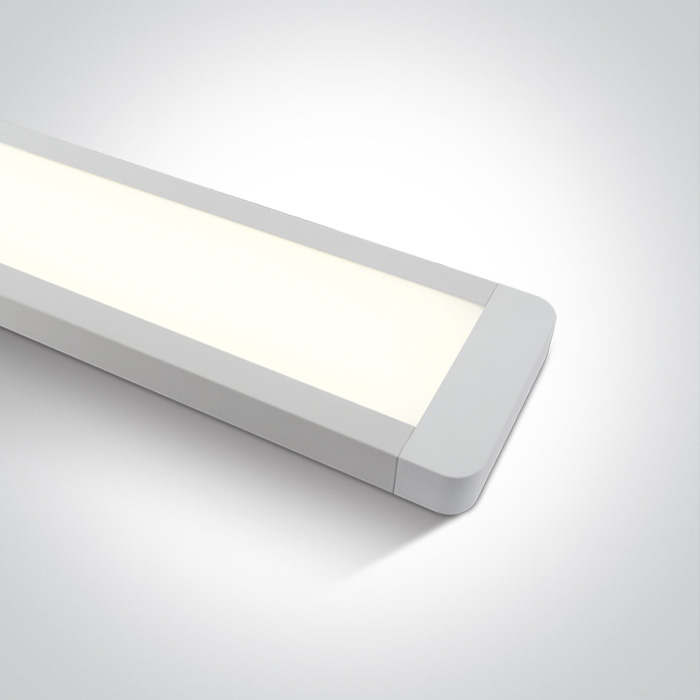

The LED Linear Range CCT V - 38225M
IP Rating IP20
ACCESSORIES
The LED Linear Range - 050090

38225M/W/C
DIMENSIONS
DOWNLOADS
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
11 Office & Kitchen
Family
The LED Linear Range CCT V
Colour
White
Material
Aluminium + Plastic
Shape
Rectangular
Length
615 mm
Width
130 mm
Height
27 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
25W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Brand
Samsung
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
250mA,
Specifications Voltage Range Vr
VR@250mA=75-95V
Specifications Ip Rating
IP20
Specifications Dimmable
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
CCTV
Data Colour Temperature
3000K-4000K-6500K
Data Lumen Output
2250lm
Data Light Efficiency
90lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Weight Kg
0.980kg
Info Pcs Per Box
8
Info Barcode Ean Number
5291889078012
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
2 Years
Average Lifetime
36000Hrs L70B50

The LED Linear Range CCT V – 38225M

38225M
38225M
From £54.00

Stock:

UK Warehouse: 0 In stock
Main Warehouse: 1044 In stock
Shipping

Next day delivery available for items shipped from the UK Warehouse. Items shipped from our Main Warehouse typically arrive within 7 days.

*Orders that contain both UK Warehouse Stock and Main Warehouse stock will be despatched as one complete order unless otherwise specified by the customer (additional shipping fees may be incurred). Please contact the sales team at sales@one-lightuk.com or call us on 01992 445 101 to lets us know if you require a part shipment.
