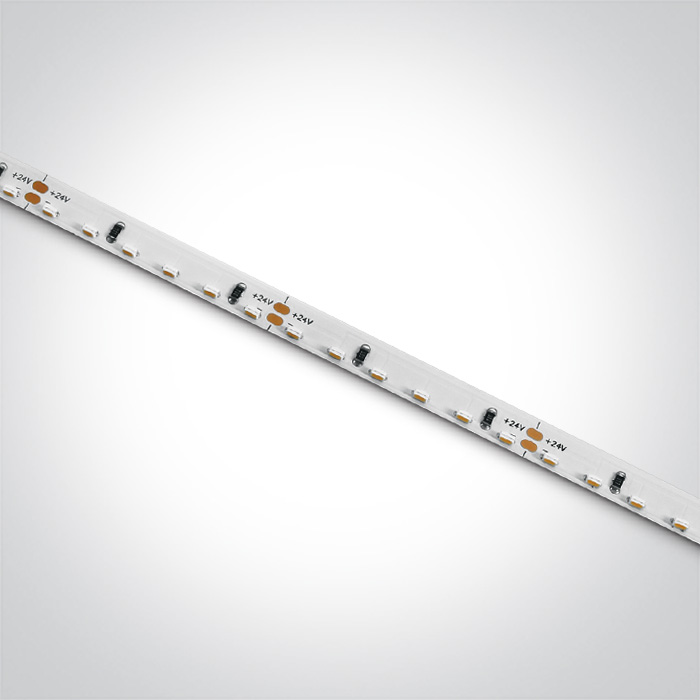

The Vertical Light Range 24V – 7835V/W
18 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

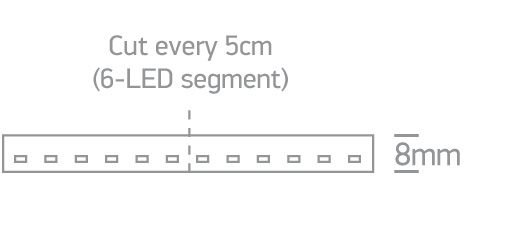

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
08 Strips & Profiles
Family
The Vertical Light Range 24V
Shape
Rectangular
Length
5 mm
Width
8 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
Dimmable
Yes
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Voltage
Excluding Gear Input Voltage
24V DC
Excluding Gear Safety Class
III
Excluding Gear Power Watts
14,4W/m
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3014
Excluding Gear Led Brand
Refond
Excluding Gear Led Number
120LEDS/m
Excluding Gear Dimmable
Yes
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1152lm/m
Data Light Efficiency
80lm/W
Data Cri
90
Data Darklight
No
Packing Info
Info Box Length Cm
24cm
Info Box Width Cm
21,5cm
Info Box Height Cm
2cm
Info Box Weight Kg
0.182kg
Info Pcs Per Box
40
Info Barcode Ean Number
5291889058793
Customs
Tariff
9405499090
Energy Certificates - Warranty
Warranty
5 Years
