The Blue LED Strips 24V – 7820W

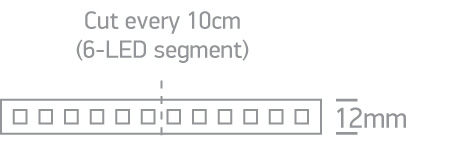

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
08 Strips & Profiles
Family
The Blue LED Strips 24V
Material
Silicone
Shape
Rectangular
Length
5000 mm
Width
12 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
Yes
Fire Rated
No
Electrical Characteristics
Gear Type
Order Separately
Solar
No
50hz
No
60hz
No
Dimmable
Yes
F Mark
No
Fitting Excluding Gears
Excluding Gear Input Type
Constant Voltage
Excluding Gear Input Voltage
24V DC
Excluding Gear Safety Class
III
Excluding Gear Power Watts
4,8W/m
Excluding Gear Ip Rating
IP68
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3528
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
60LEDs/m
Excluding Gear Dimmable
Yes
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
N/A
Characteristics Maximum Fan Flow Rate
N/A
Characteristics Fan Power Input
N/A
Characteristics Service Value
N/A
Characteristics Stand By Power
N/A
Characteristics Sound Power
N/A
Characteristics Air Velocity
N/A
Characteristics Rpm
N/A
Characteristics Speeds
N/A
Illumination Data
Data Colour Code
Blue
Data Colour Temperature
Blue
Data Lumen Output
-
Data Light Efficiency
N/A
Data Cri
N/A
Data Darklight
No
Packing Info
Info Box Length Cm
26cm
Info Box Width Cm
25cm
Info Box Height Cm
2cm
Info Box Weight Kg
0.440kg
Info Pcs Per Box
40
Info Master Carton Length Cm
N/A
Info Master Carton Width Cm
N/A
Info Master Carton Height Cm
N/A
Info Master Carton Weight Kg
N/A
Info Barcode Ean Number
5291889018285
Customs
Tariff
9405423100
Energy Certificates - Warranty
Energy Class
N/A
Warranty
3 Years
