The 230V IP65 Range – 7860

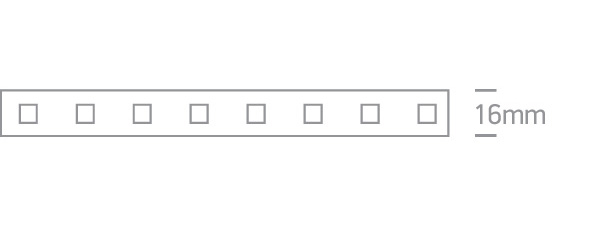

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
08 Strips & Profiles
Family
The 230V IP65 Range
Shape
Rectangular
Length
50000 mm
Width
16 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
Yes
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
Yes
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
9W/m
Ip Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer Type
Triac
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Safety Class
II
Excluding Gear Power Watts
9W/m
Excluding Gear Ip Rating
IP65
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3528
Excluding Gear Led Brand
Epistar
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
450W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Ip Rating
IP65
Specifications Safety Class
II
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
750lm
Data Light Efficiency
100lm/W
Data Cri
80
Data Darklight
No
Packing Info
Info Box Weight Kg
0.152kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889044574
Customs
Tariff
9405423100
Energy Certificates - Warranty
Energy Consumption
N/A
Energy Class
F
Warranty
2 Years
Average Lifetime
30000hours
