Drivers - 89026AL

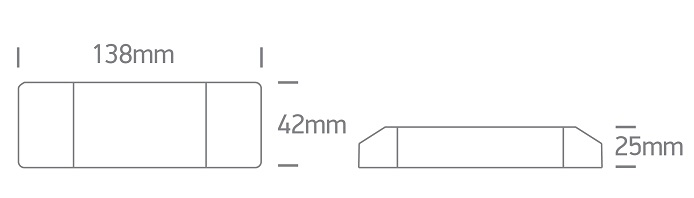

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Gear
Category
New 2025 Edition 2
Family
Drivers
Material
Plastic
Shape
Rectangular
Length
138 mm
Width
42 mm
Height
25 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Ik Rating
0
Fire Rated
No
Electrical Characteristics
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
Refer to Table
Specifications Power Factor
0,95
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
Yes
Specifications Ambient Temperature
45°C
Specifications Operating Temperature
80°C
Specifications Housing Material
Plastic
Specifications Dimmer Type
Dali, Push to Dim
Specifications Fast Connection Type
One Light 350+700
Specifications Fast Connector
Yes
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Darklight
No
Packing Info
Info Box Weight Kg
0.146kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291889080640
Customs
Tariff
8504408390
Energy Certificates - Warranty
Warranty
5 Years

Drivers – 89026AL

89026AL

10 in stock

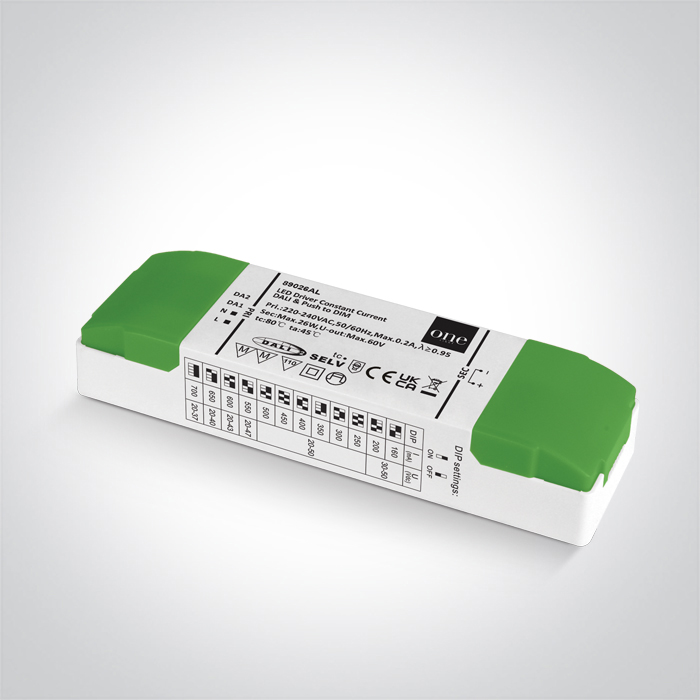

  • DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings
  • Adjustable output using DIP Switches
  • Output:160/200mA 30-50V250/300/350/400/450/500mA 20-50V550mA 20-47V600mA 20-43V650mA 20-40V700mA 20-37VComplies with standard EN61347-1 and any other specific standards.
