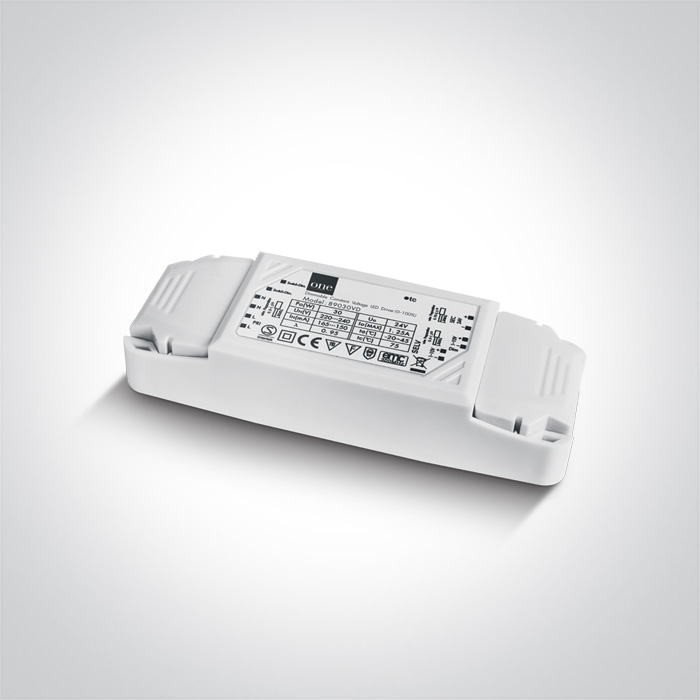

The 24V DC Dimmable Range Constant voltage – 89030VD
19 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

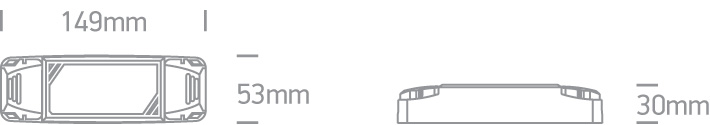

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Gear
Category
23 Drivers
Family
The 24V DC Dimmable Range Constant voltage
Material
Plastic
Shape
Rectangular
Length
149 mm
Width
53 mm
Height
30 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Ik Rating
0
Fire Rated
No
Electrical Characteristics
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
30W
Specifications Power Factor
0,95
Specifications Constant Voltage
Yes
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
Yes
Specifications 48v
No
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
Yes
Specifications Ambient Temperature
-20ºC~45ºC
Specifications Operating Temperature
75ºC
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Dimmer Type
Push to Dim, 1-10V
Specifications Protection
Short Circuit / Overload / Overheat Protection
Specifications Fast Connector
No
Specifications Manufacturer
One Light Ltd
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
No
Packing Info
Info Box Length Cm
15,7cm
Info Box Width Cm
5,5cm
Info Box Height Cm
3,6cm
Info Box Weight Kg
0.300kg
Info Pcs Per Box
20
Info Master Carton Length Cm
25cm
Info Master Carton Width Cm
21cm
Info Master Carton Height Cm
23cm
Info Master Carton Weight Kg
5,9Kg
Info Barcode Ean Number
5291889046516
Customs
Tariff
8504408390
Energy Certificates - Warranty
Warranty
5 Years
