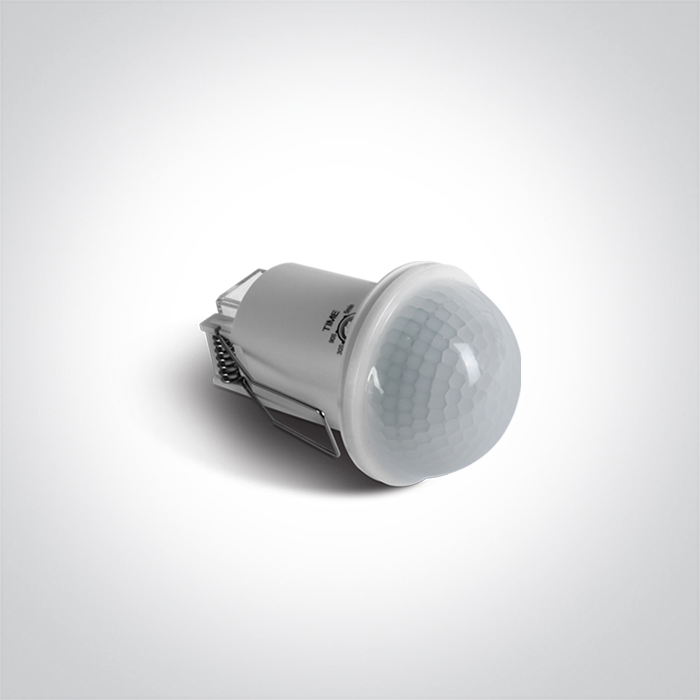

Recessed Ceiling Infrared Motion & Presence Sensor - 22008A
New

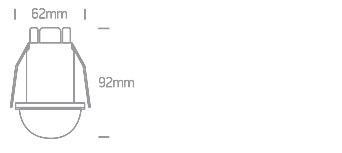

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Sensor
Category
24 Control & Dimming
Family
Recessed Ceiling Infrared Motion & Presence Sensor
Material
PC
Shape
Circular
Height
92 mm
Diameter
62mm
Cutout Hole Diameter
45mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
80mm
Indoor
Yes
Outdoor
No
Fire Rated
No
Electrical Characteristics
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Input Voltage
220-240V
Specifications Power Watts
300W (LED) 800W (Incandescent)
Specifications Safety Class
II
Specifications Motion Detection
Yes
Specifications Brightness Detection
Yes
Specifications Detection Angle
360
Specifications Detection Distance
20m Motion, 6m Presence
Specifications Time Delay
10sec 3sec to 30min 2 min (adjustable)
Specifications Ambient Light
<3-2000lux
Specifications Ip Rating
IP20
Specifications Installation Height
2,2-4m
Illumination Data
Data Darklight
No
Packing Info
Info Box Weight Kg
0.114kg
Info Pcs Per Box
50
Info Barcode Ean Number
5291890000000
Customs
Tariff
8536309090
Energy Certificates - Warranty
Warranty
2 Years

Recessed Ceiling Infrared Motion & Presence Sensor – 22008A

22008A

Out of stock

  • 230V 300W (LED) 800W (Incandescent) Recessed Ceiling Infrared Motion & Presence Sensor
  • Time delay and daylight sensor are adjustable
  • Complies with standard EN60669 and any other specificstandards.
