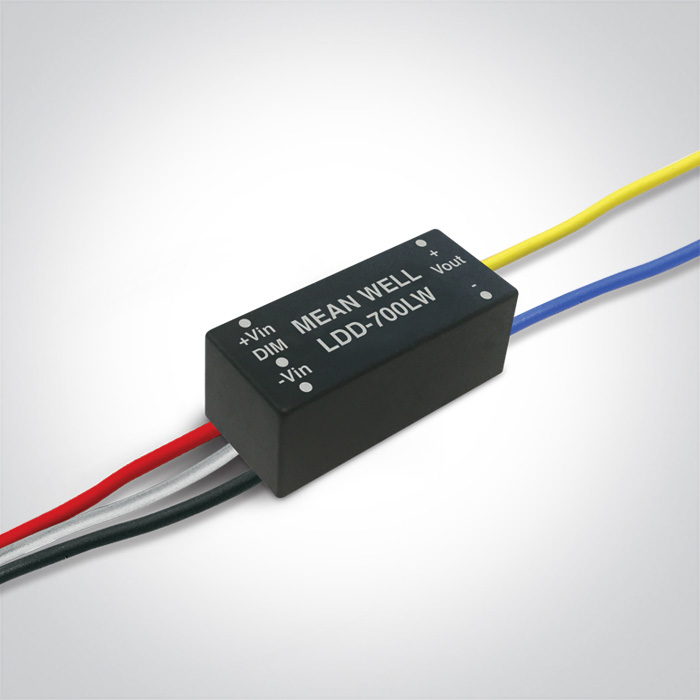

Marine Drivers for Yachts Constant current – 89028AM
154 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

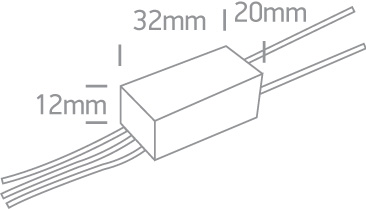

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Gear
Category
23 Drivers
Family
Marine Drivers for Yachts Constant current
Material
Plastic
Shape
Rectangular
Length
32 mm
Width
20 mm
Height
12 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Ik Rating
0
Fire Rated
No
Electrical Characteristics
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Controller
Specifications Input Voltage
9-36V DC
Specifications 50hz
No
Specifications 60hz
No
Specifications Power Watts
8,4W@12V 16,8W@24V 22,4W@36V
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
700mA,
Specifications Voltage Range Vr
VR@700mA=32V
Specifications Ip Rating
IP20
Specifications Safety Class
III
Specifications Dimmable
Yes
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Specifications Manufacturer
Meanwell
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Darklight
No
Packing Info
Info Box Weight Kg
0.004kg
Info Pcs Per Box
240
Info Barcode Ean Number
5291889062745
Customs
Tariff
8504408390
Energy Certificates - Warranty
Warranty
3 Years
