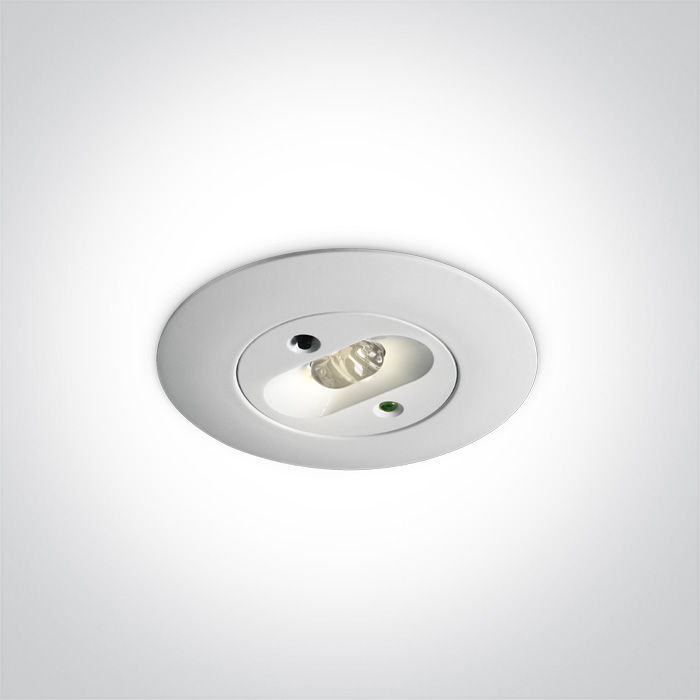

Emergency LED Recessed Spot – 89002
231 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

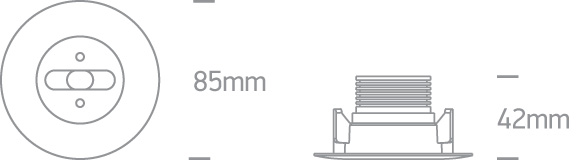

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
22 Emergency Lights
Family
Emergency LED Recessed Spot
Colour
White
Material
Aluminium + Plastic
Shape
Circular
Height
42 mm
Diameter
85mm
Cutout Hole Diameter
72mm
Recessed Ceiling
Yes
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Depth Required
120mm
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
External-Included
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
2W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Power Watts
2W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Number
216
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
2W
Specifications Power Factor
0,9
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Ip Rating
IP20
Specifications Safety Class
II
Specifications Dimmable
No
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Emergency Specification
Specifications Battery Type
Ni-Cd
Specifications Battery Capacity
3000mAh
Specifications Battery Voltage
3,6V
Specifications Operation Time
3Hrs
Specifications Charging Time
24Hrs
Specifications Maintened
Yes
Specifications Non Maintened
Yes
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Daylight
Data Colour Temperature
6000K
Data Lumen Output
150lm
Data Light Efficiency
75lm/W
Data Darklight
No
Packing Info
Info Box Length Cm
27cm
Info Box Width Cm
11cm
Info Box Height Cm
7,5cm
Info Box Weight Kg
0.766kg
Info Pcs Per Box
12
Info Barcode Ean Number
5291889047025
Customs
Tariff
8504408390
Energy Certificates - Warranty
Warranty
2 Years
