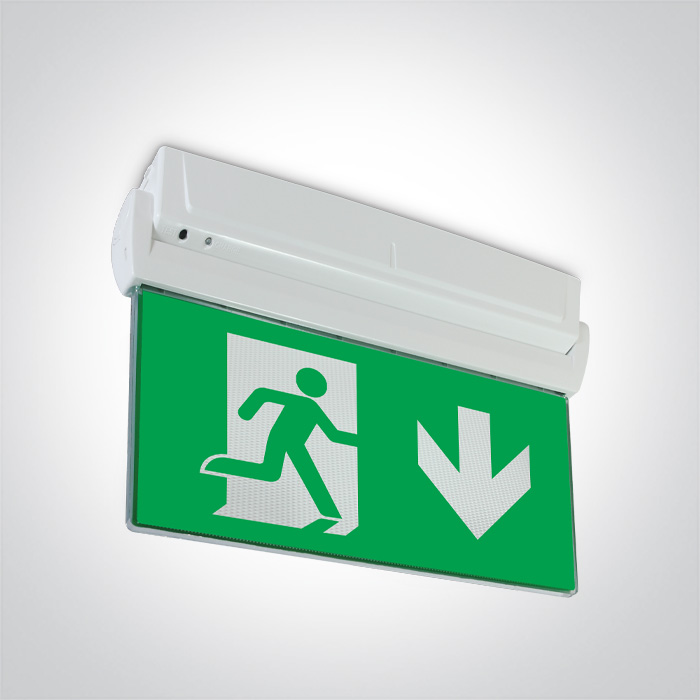

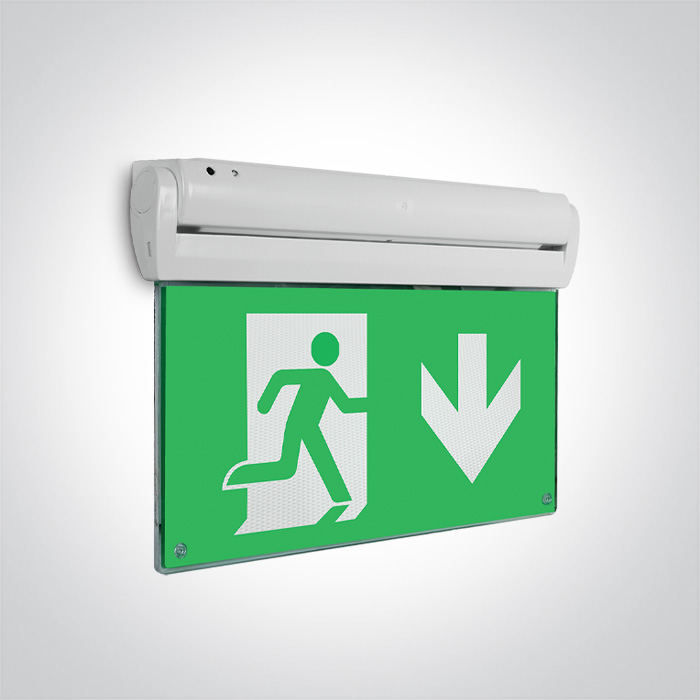

Emergency LED Ceiling Signs – 89410/W
Out of stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

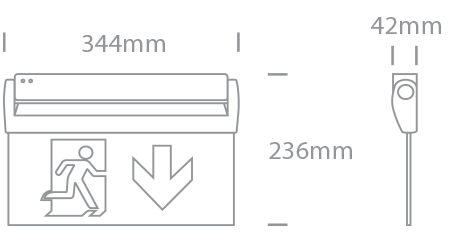

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
22 Emergency Lights
Family
Emergency LED Ceiling Signs
Colour
White
Material
PC
Diffuser Material
Acrylic
Shape
Rectangular
Length
344 mm
Width
236 mm
Height
42 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
No
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
II
Power Watts
1,8W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Power Watts
1,8W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 2835
Excluding Gear Led Number
14
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
Yes
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Power Watts
1,8W
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Ip Rating
IP20
Specifications Safety Class
I
Specifications Dimmable
No
Specifications Ambient Temperature
0~40°C
Specifications Housing Material
Plastic
Specifications Output Terminal
Connector
Specifications Fast Connector
No
Emergency Specification
Specifications Battery Type
LiFePO4
Specifications Battery Capacity
1500mAh
Specifications Battery Voltage
3,2V
Specifications Operation Time
3Hrs
Specifications Charging Time
24Hrs
Specifications Maintened
Yes
Specifications Non Maintened
Yes
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Daylight
Data Colour Temperature
6000K
Data Lumen Output
40lm
Data Light Efficiency
22,22lm/W
Data Darklight
No
Packing Info
Info Box Weight Kg
1.116kg
Info Pcs Per Box
6
Info Barcode Ean Number
5291889075721
Customs
Tariff
9405114090
Energy Certificates - Warranty
Warranty
2 Years
