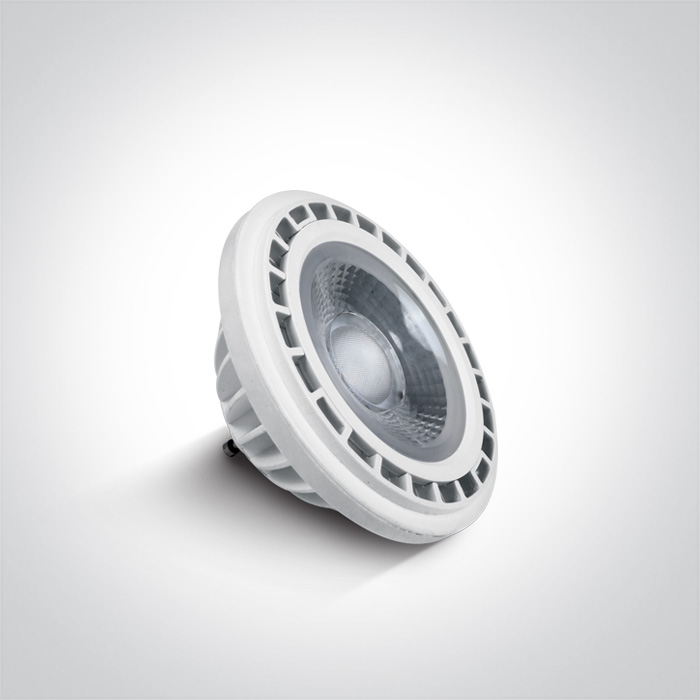

Dimmable R111 GU10 - 7315GD/W/45

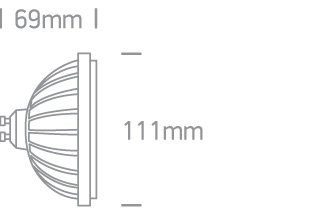

DIMENSIONS
DOWNLOADS
Download Icon
Download Icon
Featured Image
PRODUCT INFORMATION
Physical Specification
Type
Lamp
Category
25 Lamps
Family
Dimmable R111 GU10
Shape
Circular
Height
69 mm
Diameter
111mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
No
Surface Wall
No
Surface Floor
No
Ceiling Suspended
No
Track Mounted
No
Underwater
No
Indoor
No
Outdoor
No
Ik Rating
0
Fire Rated
No
Electrical Characteristics
Gear Type
No
Solar
No
50hz
No
60hz
No
F Mark
No
Fitting Excluding Gears
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications 50hz
No
Specifications 60hz
No
Specifications Constant Voltage
No
Specifications Constant Current
No
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Fast Connector
No
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications Input Type
Mains Voltage
Specifications Input Voltage
220-240V
Specifications 50hz
Yes
Specifications 60hz
Yes
Specifications Voltage Range
0
Specifications Power Watts
15W
Specifications Lamp Type
LED
Specifications Lamp Holder
GU10
Specifications Led Type
SMD 2835
Specifications Led Brand
Epistar
Specifications Dimmable
Yes
Specifications Dimmer Type
Triac
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Illumination Data
Data Colour Code
Warm White
Data Colour Temperature
3000K
Data Lumen Output
1200lm
Data Light Efficiency
80lm/W
Data Cri
80
Data Beam Angle
45°
Data Darklight
No
Packing Info
Info Box Length Cm
11,5cm
Info Box Width Cm
9cm
Info Box Height Cm
9cm
Info Box Weight Kg
0.265kg
Info Pcs Per Box
20
Info Barcode Ean Number
5291889041771
Customs
Tariff
8539520000
Energy Certificates - Warranty
Energy Consumption
15kWh/1000h
Energy Class
F
Warranty
2 Years
Average Lifetime
50000hrs
Switching Cycles
15000

Dimmable R111 GU10 – 7315GD/W/45

7315GD/W/45

15 in stock

  • Triac Dimmable R111 SMD LED GU10 15W 230V AC lamp
  • Suitable for residential and commercial applications
  • Complies with standard EN62560 and any other specificstandards.
