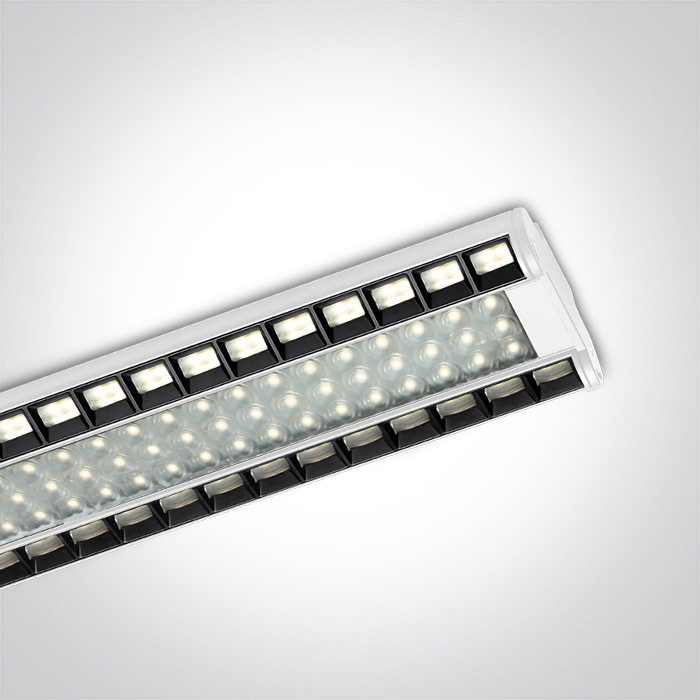

The Supermarket LED Linear Range Aluminium – 38280/W/C
38 in stock
New to ONE Light UK?
Register for a Trade Account
- Access our full lighting range
- Unlock all product pricing and stock availability
- Project pricing
- Streamline your ordering process
- Automatic additional discounts on larger order values

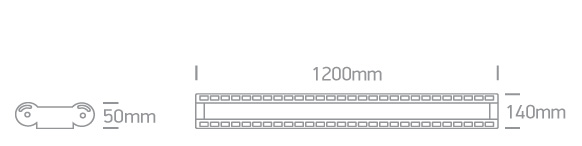

DIMENSIONS
DOWNLOADS
PRODUCT INFORMATION
Physical Specification
Type
Fitting
Category
21 Industrial & Floodlights
Family
The Supermarket LED Linear Range Aluminium
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1200 mm
Width
140 mm
Height
50 mm
Recessed Ceiling
No
Recessed Rectangular Panel Type Ceiling
No
Recessed Trimless Ceiling
No
Recessed Wall
No
Recessed Trimless Wall
No
Inground
No
Surface Ceiling
Yes
Surface Wall
No
Surface Floor
No
Ceiling Suspended
Yes
Track Mounted
No
Underwater
No
Indoor
Yes
Outdoor
No
Adjustable
1 Direction
Fire Rated
No
Electrical Characteristics
Gear Type
Built In
Solar
Yes
50hz
No
60hz
Yes
Input Voltage
220-240V
Safety Class
I
Power Watts
80W
Ip Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Yes
Fitting Excluding Gears
Excluding Gear Input Type
Constant Current
Excluding Gear Input Current
600mA+1500mA
Excluding Gear Safety Class
I
Excluding Gear Power Watts
80W
Excluding Gear Ip Rating
IP20
Excluding Gear Light Source
LED built in
Excluding Gear Led Type
SMD 3030/2835
Excluding Gear Led Brand
Epistar
Excluding Gear Led Number
168
Excluding Gear Dimmable
No
Excluding Gear Fast Connector
No
Excluding Gear F Mark
No
Gear
Specifications Type
Led Driver
Specifications Input Voltage
220-240V
Specifications 50hz
No
Specifications 60hz
No
Specifications Power Watts
16,8-22,8W & 42-60W
Specifications Power Factor
0,95
Specifications Constant Voltage
No
Specifications Constant Current
Yes
Specifications Other
No
Specifications 12v
No
Specifications 24v
No
Specifications 48v
No
Specifications Output Current Ma
600mA, 1500mA,
Specifications Voltage Range Vr
VR@600mA=28-38V VR@1500mA=28-40V
Specifications Ip Rating
IP20
Specifications Fast Connector
No
Specifications Manufacturer
BOKE
Emergency Specification
Specifications Maintened
No
Specifications Non Maintened
No
Lamps Specification
Specifications 50hz
No
Specifications 60hz
No
Sensor Specification
Specifications Motion Detection
No
Specifications Brightness Detection
No
Fans Characteristics
Characteristics Power Watts
0
Characteristics Maximum Fan Flow Rate
0
Characteristics Fan Power Input
0
Characteristics Service Value
0
Characteristics Stand By Power
0
Characteristics Sound Power
0
Characteristics Air Velocity
0
Characteristics Rpm
0
Characteristics Speeds
0
Illumination Data
Data Colour Code
Cool White
Data Colour Temperature
4000K
Data Lumen Output
7400lm
Data Light Efficiency
92,5lm/W
Data Cri
90
Data Darklight
No
Packing Info
Info Box Weight Kg
5.075kg
Info Pcs Per Box
4
Info Barcode Ean Number
5291889072911
Customs
Tariff
9405413990
Energy Certificates - Warranty
Warranty
3 Years
